Circuit Diagram

(M/T)

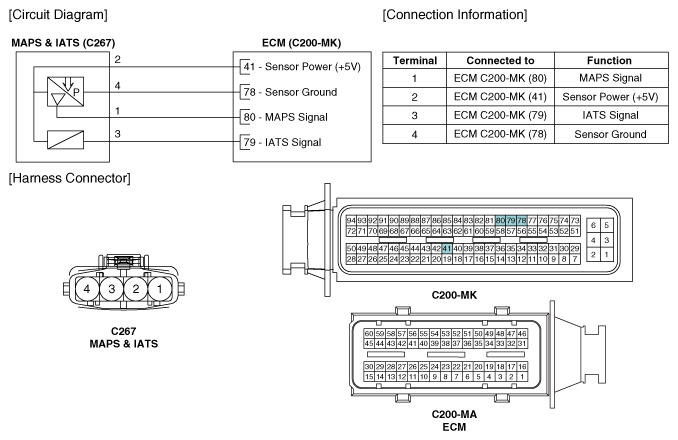

Fig 1: Intake Air Temperature Sensor Circuit Diagram (M/T) And Connector End View
G12239102Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

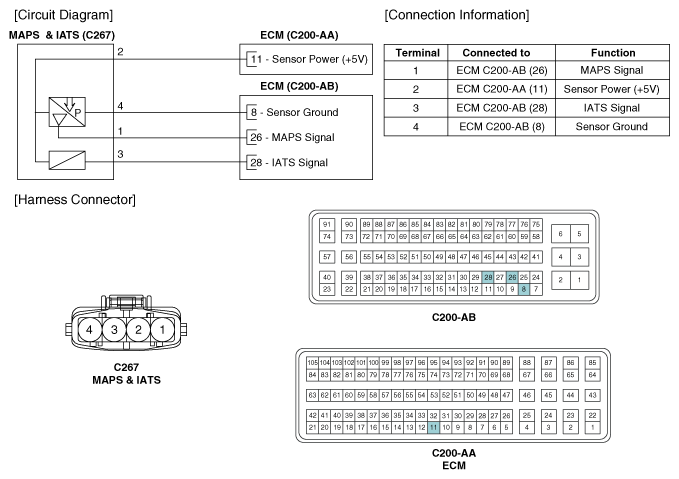

Fig 2: Intake Air Temperature Sensor Circuit Diagram (A/T) And Connector End View
G12239103Courtesy of KIA MOTORS AMERICA, INC.
