Circuit Diagram: (A/T)

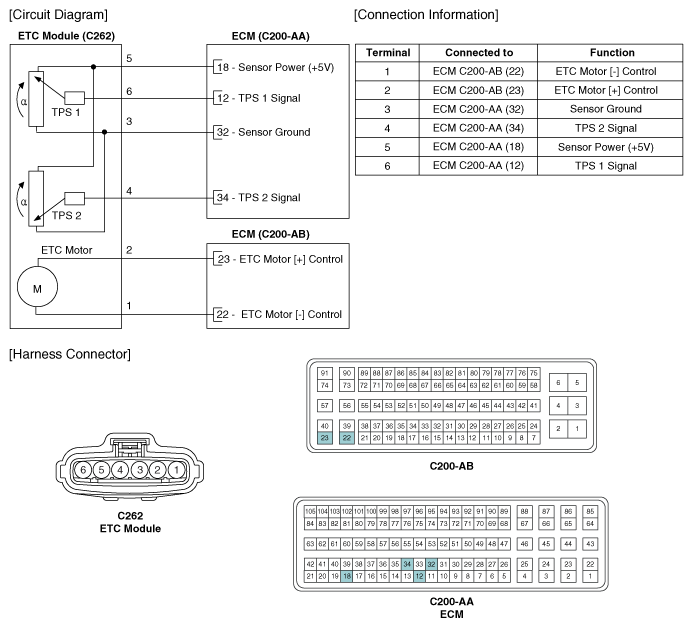

Fig 1: Electronic Throttle Control System Circuit Diagram (A/T) And Connector End View

G12239093

Courtesy of KIA MOTORS AMERICA, INC.
