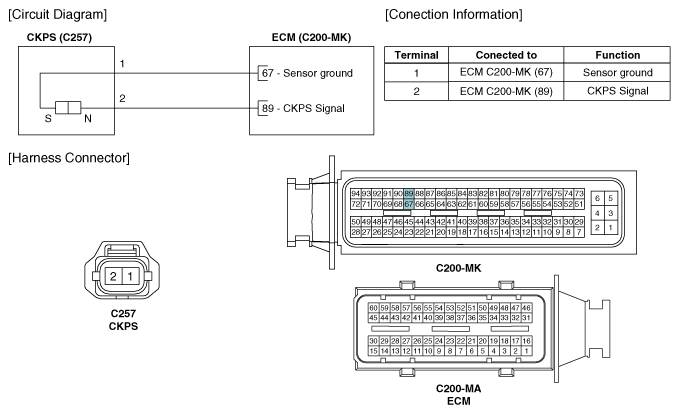

Home >> Kia >> 2017 >> Soul + >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Crankshaft Position Sensor (CKPS) >> Schematic Diagrams >> Circuit Diagram >> (M/T)
