Circuit Diagram: (A/T)

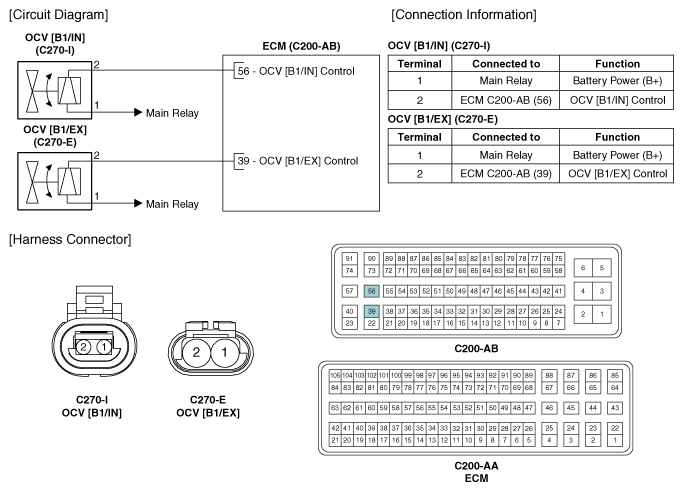

Fig 1: Continuous Variable Valve Timing Oil Control Valve Circuit Diagram (A/T) And Connector End View

G12239178

Courtesy of KIA MOTORS AMERICA, INC.
