Circuit Diagram: (M/T)

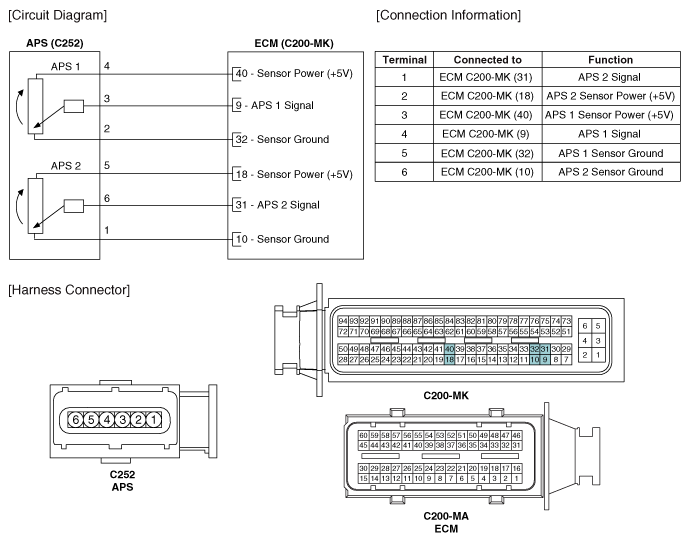

Fig 1: Accelerator Position Sensor Circuit Diagram (M/T) And Connector End View

G12239146

Courtesy of KIA MOTORS AMERICA, INC.
