Inhibitor Switch: Troubleshooting

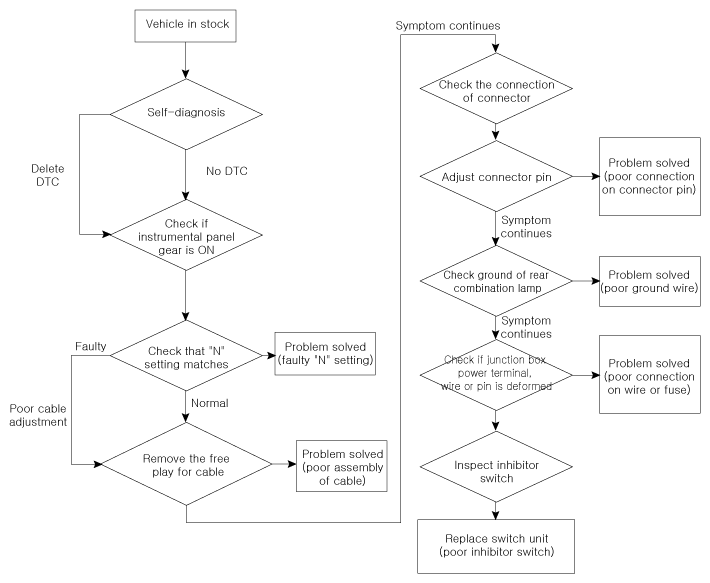

Fig 1: Inhibitor Switch Troubleshooting Chart

G12238850

Courtesy of KIA MOTORS AMERICA, INC.
