Repair Procedures: Installation

Install in the reverse order of removal.
NOTE:
- Check the following before installing the gear actuator assembly.
  1. Check that the gear actuator is placed in the "neutral" state.
  2. Check the assembled state of the O-rings (A).

    Fig 1: Locating O-Rings
    Courtesy of KIA MOTORS AMERICA, INC.
  3. Apply gear oil to the surface of O-rings.
  4. Check the assembled state of the dowel pins (A).

    Fig 2: Locating Dowel Pins
    Courtesy of KIA MOTORS AMERICA, INC.
- Perform the clutch touch point learning procedure using the KDS/GDS after replacing the gear actuator assembly.

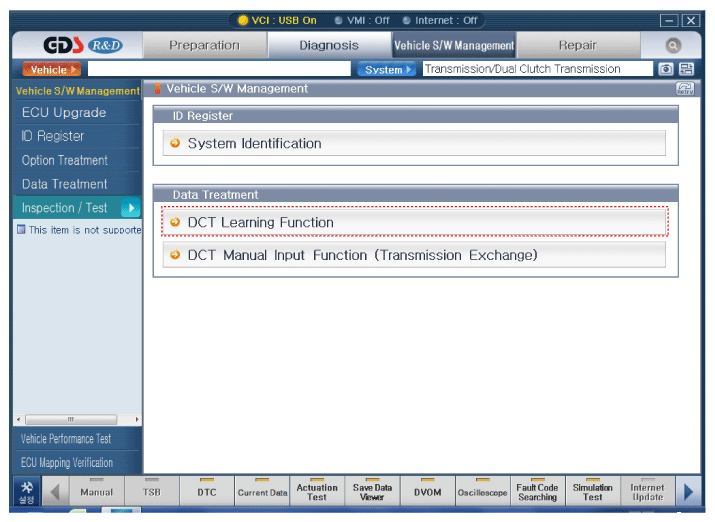

  Fig 3: Scantool Display - Vehicle S/W Management
  Courtesy of KIA MOTORS AMERICA, INC.
