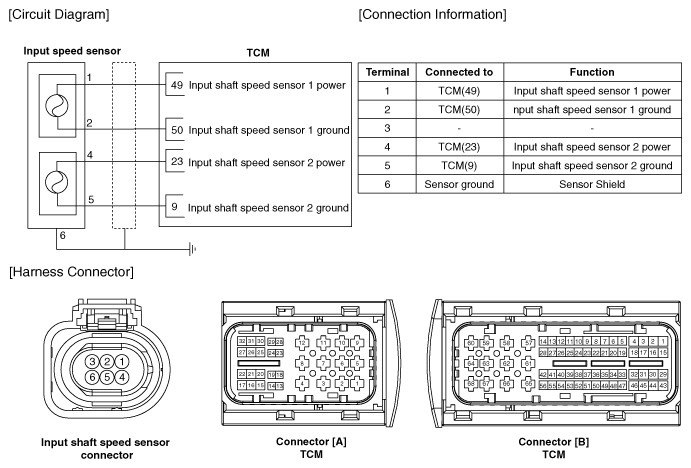

Home >> Kia >> 2017 >> Soul ! >> Repair and Diagnosis (Single Page) >> Transmission >> Transmission Control Systems >> Dual Clutch Transmission Control System - 1.6L T >> Input Speed Sensor 1 >> Schematic Diagrams >> Circuit Diagram
