Component Location

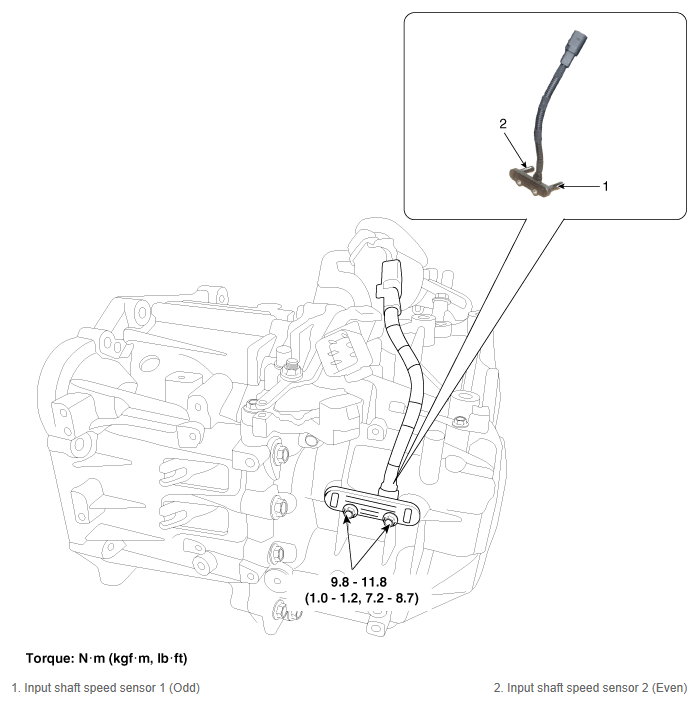

Fig 1: Input Speed Sensor 1 Components Location With Torque Specification
G12238837Courtesy of KIA MOTORS AMERICA, INC.
