Circuit Diagram

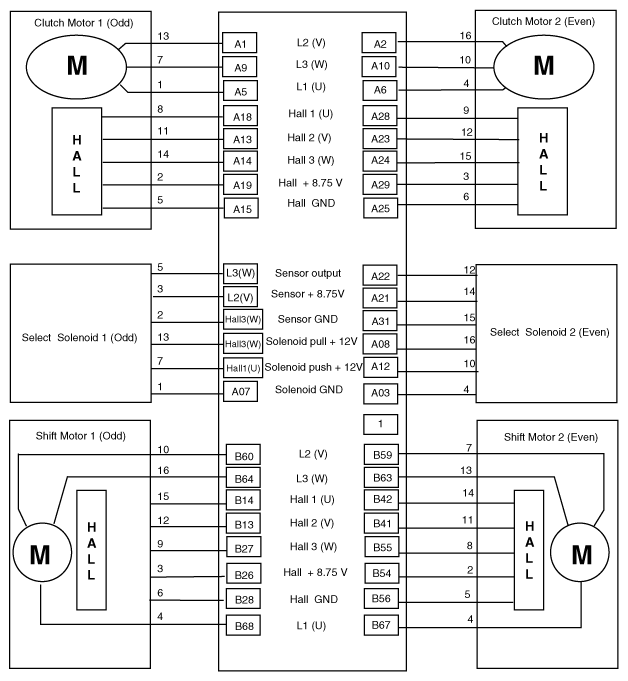

Fig 1: DCT Control Module Circuit Diagram (1 Of 2)

G12238780

Courtesy of KIA MOTORS AMERICA, INC.

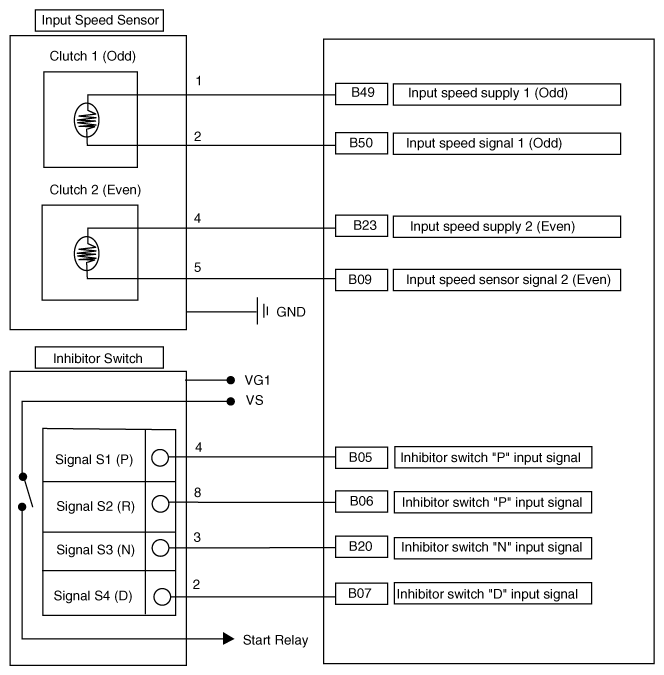

Fig 2: DCT Control Module Circuit Diagram (2 Of 2)

G12238781

Courtesy of KIA MOTORS AMERICA, INC.
