Signal Waveform & Data

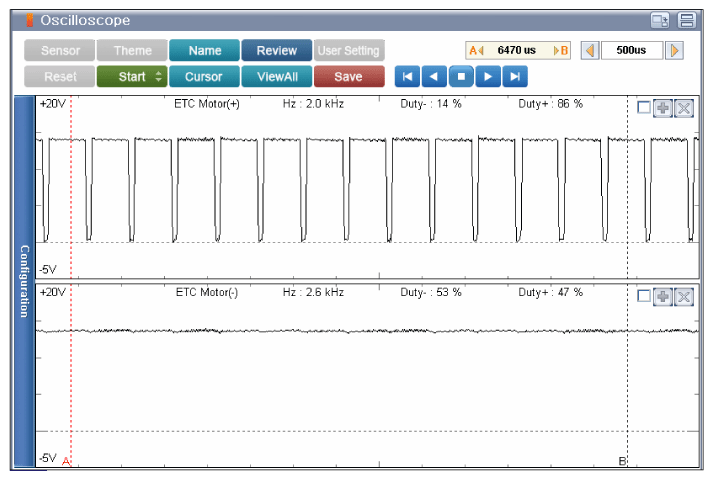

Fig 1: Screen Display - Engine Idle After Warm Up

Courtesy of KIA MOTORS AMERICA, INC.

ETC Moter (+) → Duty (+) Approx. 86%

Duty (-) Approx. 14%

ETC Moter (-) → Not in Control

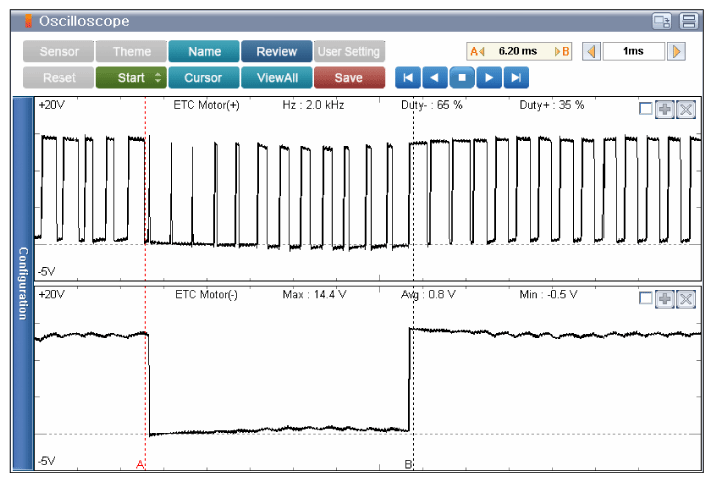

Fig 2: Screen Display - Waveform Of ETC Motor Operation Immediate Engine Accelerating

Courtesy of KIA MOTORS AMERICA, INC.
