Signal Waveform & Data

Fig 1: Screen Display - Engine Idle After Warm Up

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Screen Display - Approx. 2500RPM

Courtesy of KIA MOTORS AMERICA, INC.

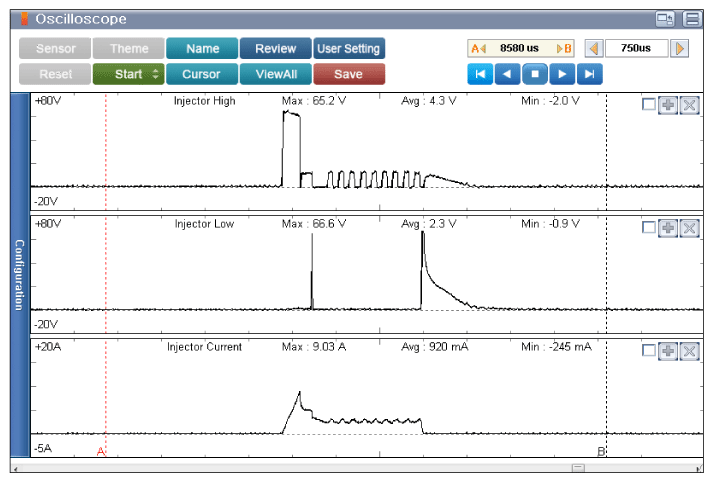

Fig 3: Screen Display - Acceleration

Courtesy of KIA MOTORS AMERICA, INC.

A: Fuel injection time - Approx. 1450us

CH. A - Injector Max 64.5V

CH. AUX - Injector Current MAX 9.21A

A: Fuel injection time - Approx. 900us

CH. A - Injector Max 64.9V

CH. AUX - Injector Current MAX 9.15A

CH. A - Injector Max 65.2V

CH. AUX - Injector Current MAX 9.09A
