Signal Waveform & Data

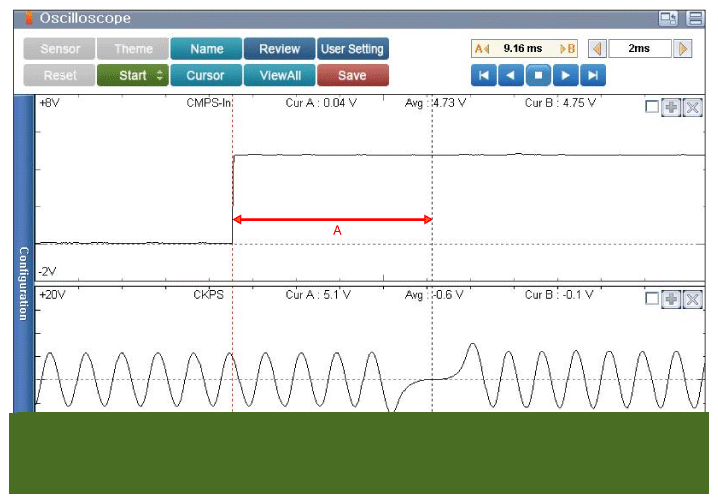

Fig 1: Scantool Display - Normal Waveforms Of CKPS, CMPS-IN At Engine Idle
G12282369Courtesy of KIA MOTORS AMERICA, INC.
  1. A: CKPS & CMPS (Intake side) Synchronization - There are about 4~5 teeth between the CKPS missing tooth and CMPS signal.
