Signal Waveform & Data

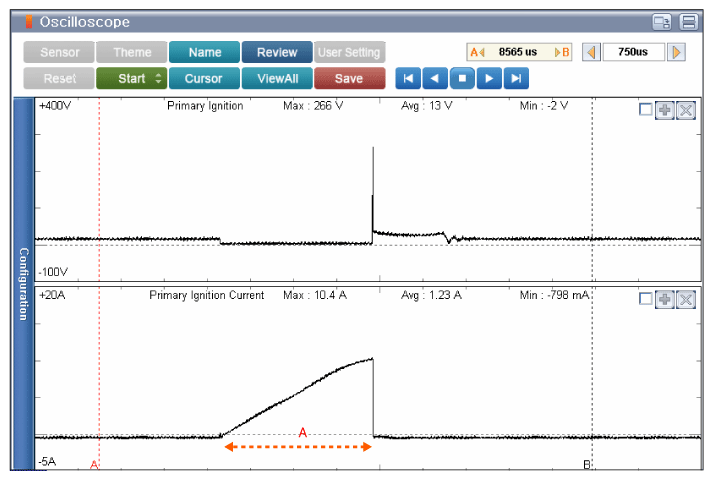

Fig 1: Scantool Display - Signal Waveform & Data (Engine Idle After Warm Up With Primary Ignition Control Time)

Courtesy of KIA MOTORS AMERICA, INC.

Primary Ignition control time - Approx. 750us

• CH. A - Primary Ignition Max 266V
• CH. AUX - Primary Ignition Current MAX 10.4A

Fig 2: Scantool Display - Signal Waveform & Data (Engine Idle After Warm Up With Fuel Injection Time)

Courtesy of KIA MOTORS AMERICA, INC.

1. A: Fuel injection time - Approx. 1545us
   • CH. A - Injector Max 64.4V
   • CH. AUX - Injector Current MAX 9.09A
