Signal Waveform & Data

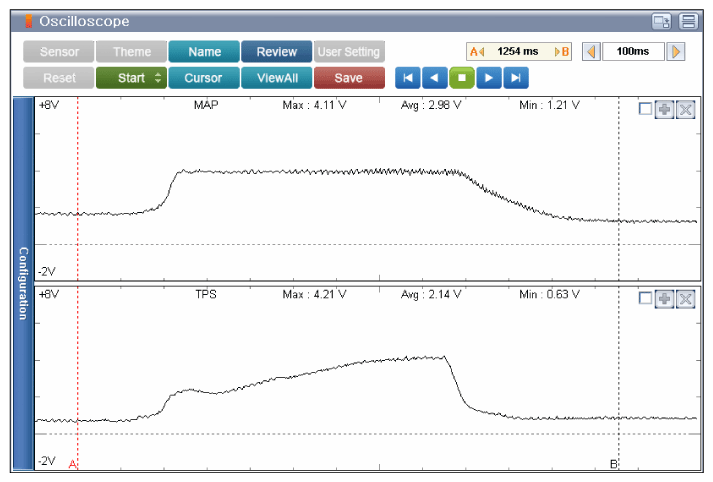

Fig 1: Screen Display - Signal Waveform Of MAP And TPS (Acceleration)
G12281912Courtesy of KIA MOTORS AMERICA, INC.
