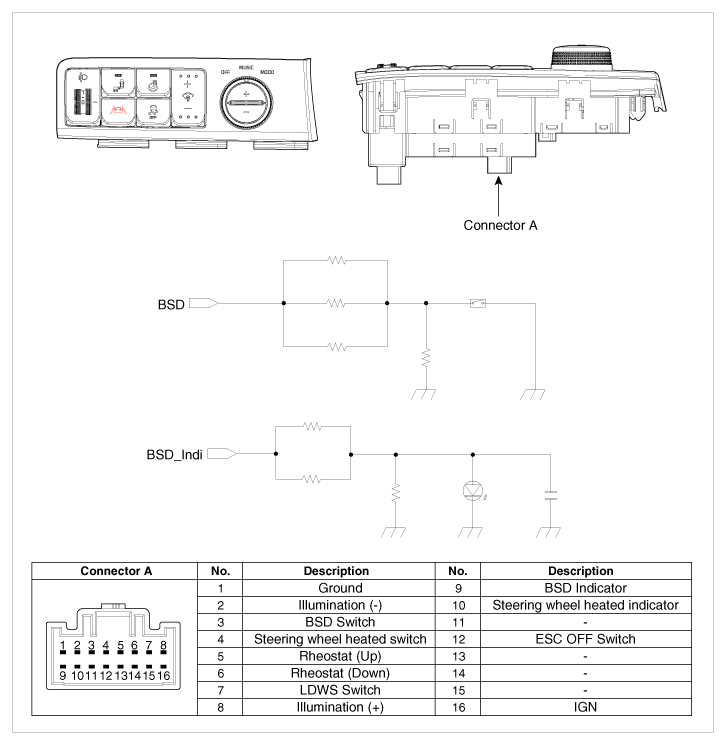

Home >> Kia >> 2017 >> Soul ! >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Drivers Assistance Systems - ADAS >> Blind Spot Detection System (BSD) >> Blind Spot Detection Switch >> Schematic Diagrams >> Circuit Diagram
