Components And Components Location: Components

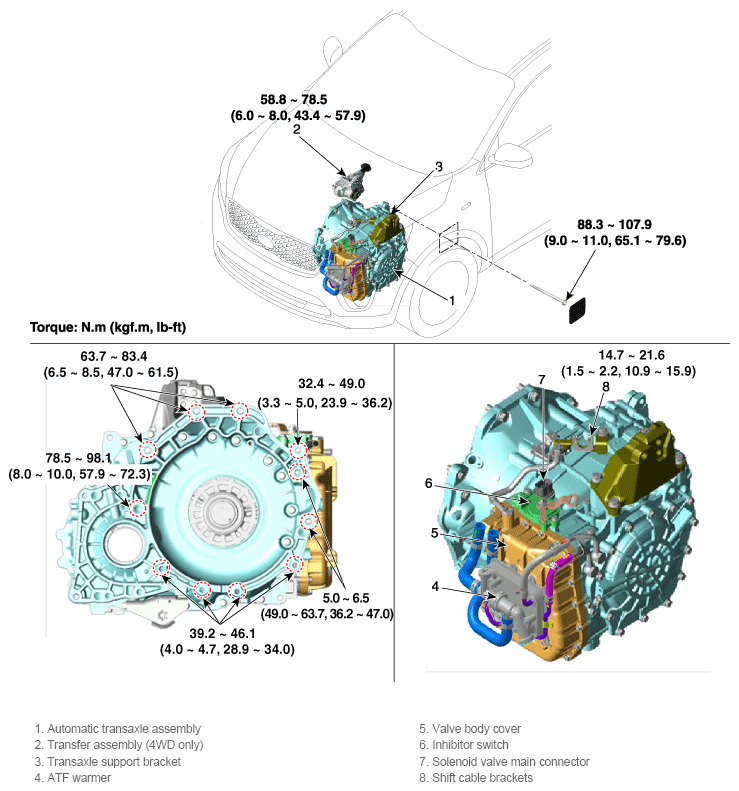

Fig 1: Automatic Transaxle System Components With Torque Specification

G12181885

Courtesy of KIA MOTORS AMERICA, INC.
