Home >> Kia >> 2017 >> Sorento SX, FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Control System - 3.3L >> Shift Lever >> Components and Components Location >> Components

Components and Components Location: Components

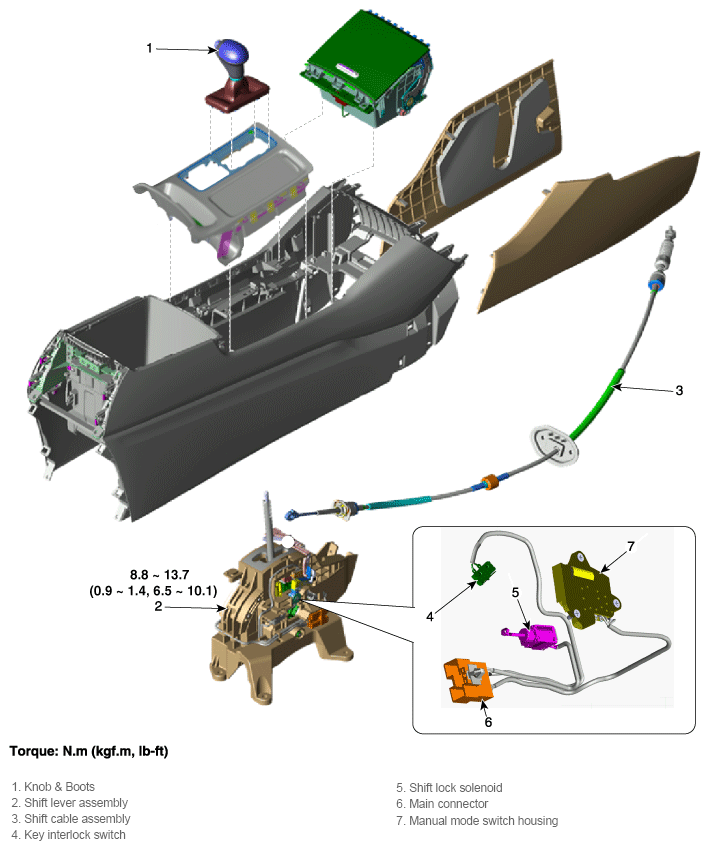

Fig 1: Shift Lever Components With Torque Specification

G12181851

Courtesy of KIA MOTORS AMERICA, INC.
