Components and Components Location: Components

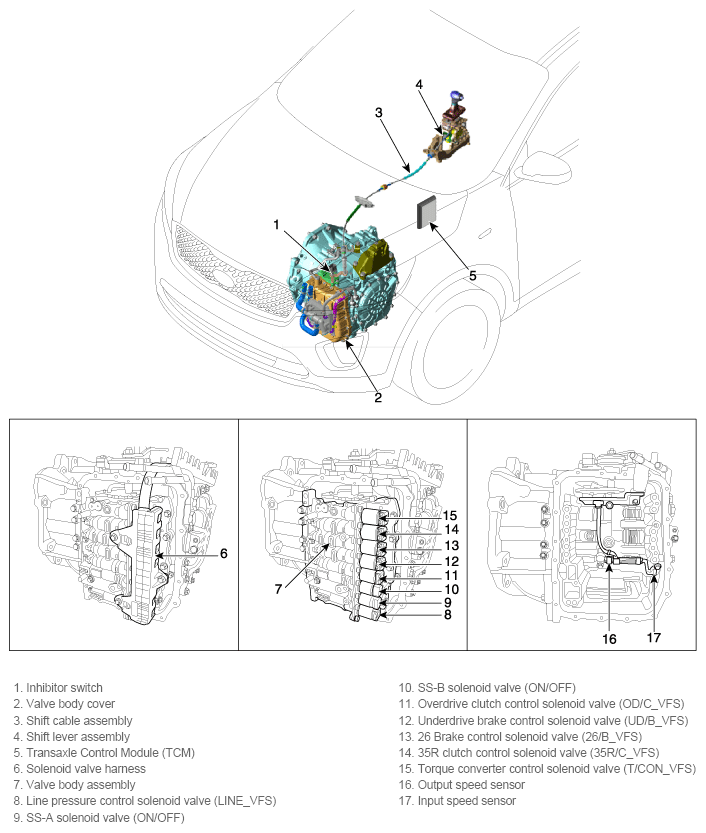

Fig 1: Automatic Transaxle Control System Components

G12181687

Courtesy of KIA MOTORS AMERICA, INC.
