Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

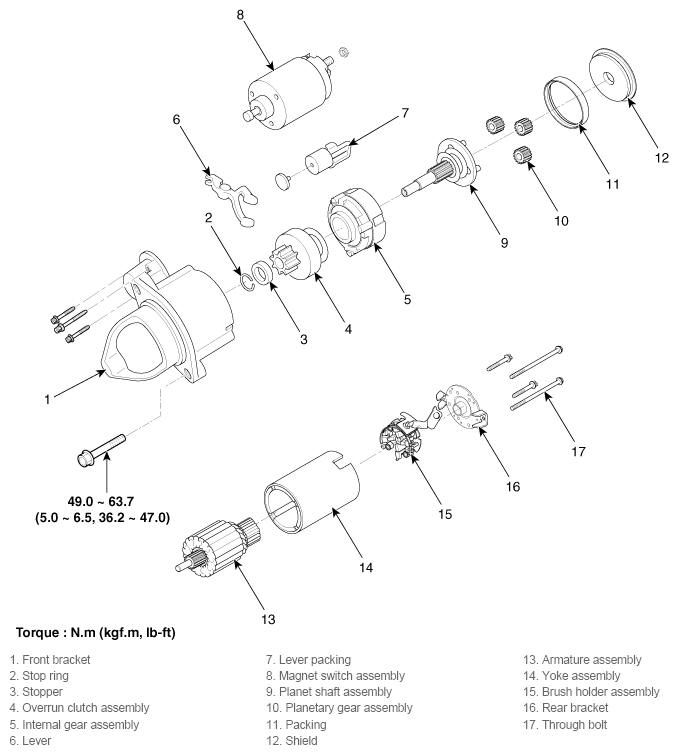

Fig 1: Locating Starter Components With Torque Specification
G12177684Courtesy of KIA MOTORS AMERICA, INC.
