Circuit Diagram

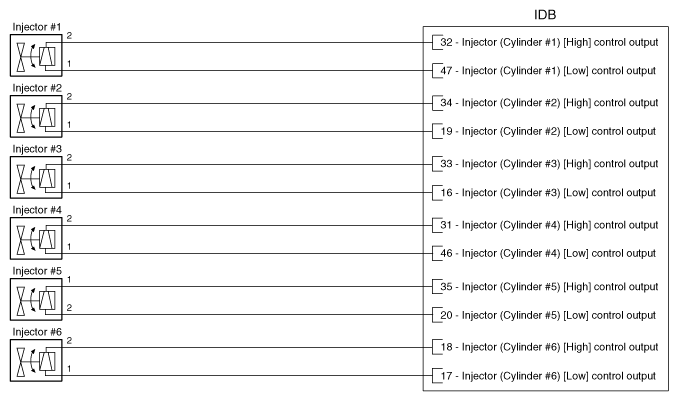

Fig 1: IDB Circuit (1 Of 2)

G12181456

Courtesy of KIA MOTORS AMERICA, INC.

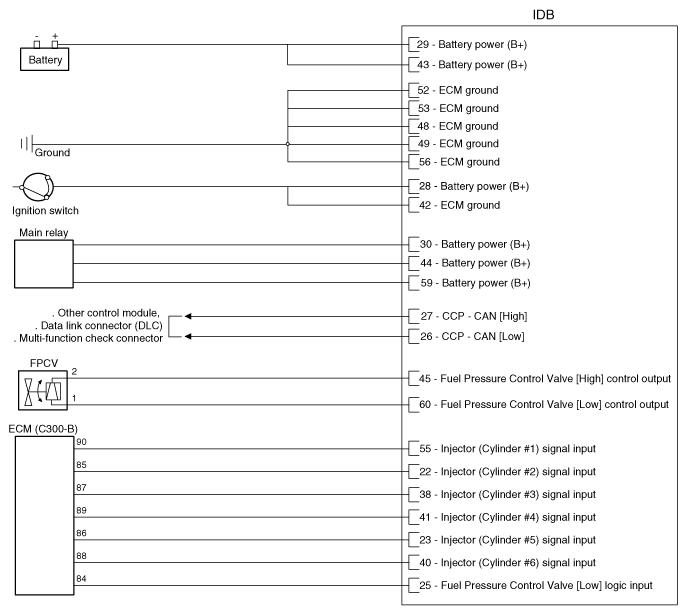

Fig 2: IDB Circuit (2 Of 2)

G12181457

Courtesy of KIA MOTORS AMERICA, INC.
