Components And Components Location: Components

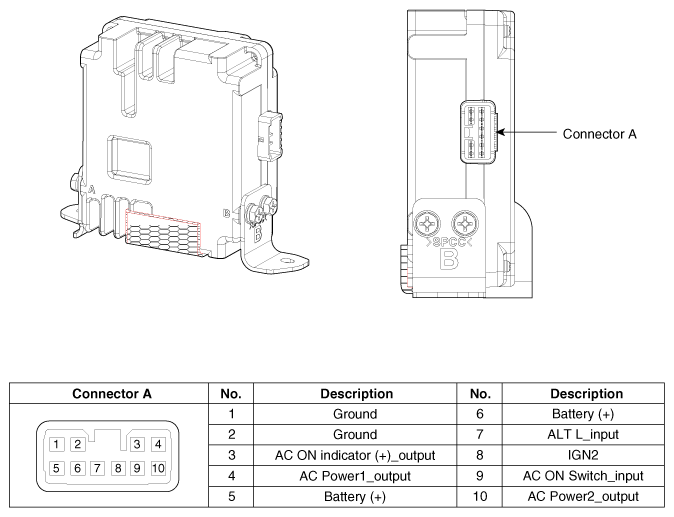

Fig 1: Locating AC Inverter Unit & Connector Terminals

G12173228

Courtesy of KIA MOTORS AMERICA, INC.
