Components And Components Location: Components

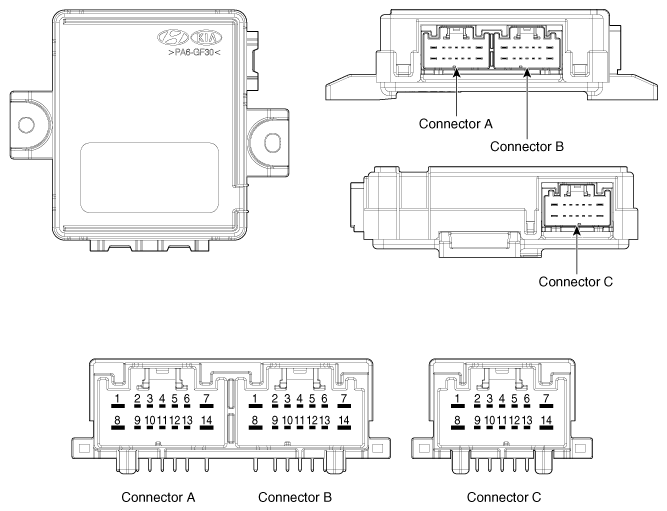

CONNECTOR PIN INFORMATION
| No. | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | System Power (+) | Cinching motor (+) | Spindle motor right CCW (+) |
| 2 | Tail gate inner switch Illumination | Full open switch | Hall sensor right power |
| 3 | - | Full lock switch | Spindle left shield_GND |
| 4 | Body CAN High | Half lock switch | Hall sensor right_GND |
| 5 | Body CAN Low | Home position switch_GND | Spindle right shield_GND |
| 6 | Buzzer | Latch switch_GND | Hall sensor left_power |
| 7 | - | System_GND | Spindle motor left CCW (-) |
| 8 | Motor power | Cinching motor (-) | Spindle motor right CCW (-) |
| 9 | - | Tail gate open/close switch | Hall sensor1 right |
| 10 | Gear position | Tail gate inner switch | Hall sensor2 right |
| 11 | - | Home position switch | Hall sensor left_GND |
| 12 | Anti-pinch sensor left power | Anti-pinch sensor left power | Hall sensor1 left |
| 13 | Anti-pinch sensor right power | Anti-pinch sensor right power | Hall sensor2 left |
| 14 | - | Power GND | Spindle motor left CCW (+) |
