System Initialization

System initialization is needed to recognize the closing position of the tailgate.

The initialization process after battery power is reset, is to find the maximum opening and closing position of the tailgate.

After the successful initialization, the tailgate's opening and closing position have to be recognized to guarantee the general tailgate's opening and closing.

Procedure:

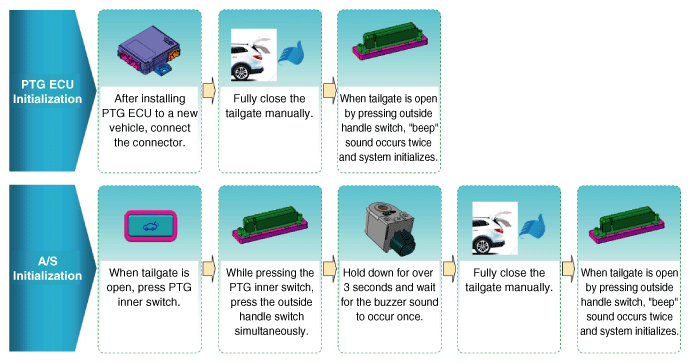

Fig 1: PTG ECU Initialization Procedure Chart

Courtesy of KIA MOTORS AMERICA, INC.

BUZZER OPERATION MODE

Operation	Request source	Buzzer on/off time	Number of buzzer cycles	Hazard on/off time	Number of hazard cycles	Comment
Start opening	Outside Switch	500/500	2	500/500	2	Delay start of tailgate until first cycle is over
	Inner Switch	500/500	2	500/500	2
	Console Switch	500/500	2	500/500	2
	Remote Key	500/500	2	500/500	2
	Smart Key	500/500	2	500/500	2
Start closing	Outside Switch	500/500	2	500/500	2
	Inner Switch	500/500	2	500/500	2
	Console Switch	500/500	2	500/500	2
	Remote Key	500/500	2	500/500	2
	Smart Key	500/500	2	500/500	2
Direct direction change (Open -> Close) (Area: Closed - Maximum end point for closing)	Outside Switch	500/500	2	500/500	2	No delay (Reversing and buzzing at the same time) Only delay due to mechanical system
	Inner Switch	500/500	2	500/500	2	No delay (Reversing and buzzing at the same time) Only delay due to mechanical system
	Console Switch	500/500	2	500/500	2	No delay (Reversing and buzzing at the same time) Only delay due to mechanical system
	Remote Key	500/500	2	500/500	2	No delay (Reversing and buzzing at the same time) Only delay due to mechanical system
	Smart Key	500/500	2	500/500	2	No delay (Reversing and buzzing at the same time) Only delay due to mechanical system
In manual mode (USM select) Input response	Outside Switch	-	-	-	-	-
	Inner Switch	-	-	-	-	-
	Console Switch	-	-	-	-	-
	Remote Key	-	-	-	-	-
	Smart Key	-	-	-	-	-
Obstacle detection (Reverse operation start)	-	500/500	3	-	-	-
Vehicle speeds when tailgate is open	-	500/500	10	-	-	Stop condition Complete 10 times. Tailgate full lock.
Adjust height	Inner Switch	250/250	2	-	-	-
Initialization (Deleting end position and basic position)	Inner Switch & Outside Switch	500/500	1	-	-	-
Initialization (Learning end point)	-	-	-	500/500	2	-
Initialization (During calibration)	-	500/500	Continuous	-	-	-
Tailgate not closed	-	500/500	10	500/500	10	Tailgate closed but lock switch not off (Still open)
Error detect	-	500/500	3	-	-	APS error Spindle error Hall sensor error System error (EEPROM error) Voltage error (Over/Under) PCU error Latch position error Stuck switches. (Switch pressed more than 30 sec) Thermal protection
