Compensation Requirement and Procedure

Simultaneous replacement of 4WD ECU (Controller) and coupling
- Does not require compensation.
Replacement of coupling only
- Reset the 4WD ECU's (Controller) clutch learning.

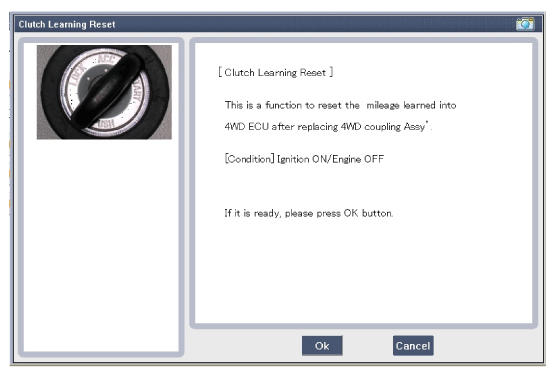

Fig 1: Scantool Display - Clutch Learning Reset
Courtesy of KIA MOTORS AMERICA, INC.

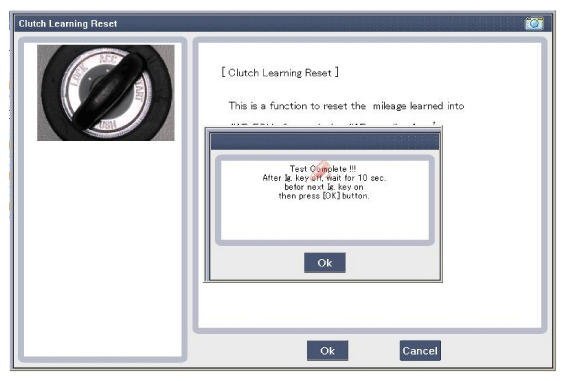

Fig 2: Scantool Display - Clutch Learning Reset Completed
Courtesy of KIA MOTORS AMERICA, INC.
Replacement of 4WD ECU (Controller) only

Before replacement: Check the ECU's clutch learning.

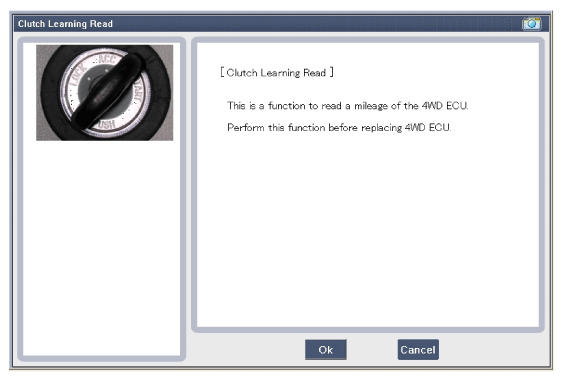

Fig 3: Scantool Display - Clutch Learning Read
Courtesy of KIA MOTORS AMERICA, INC.

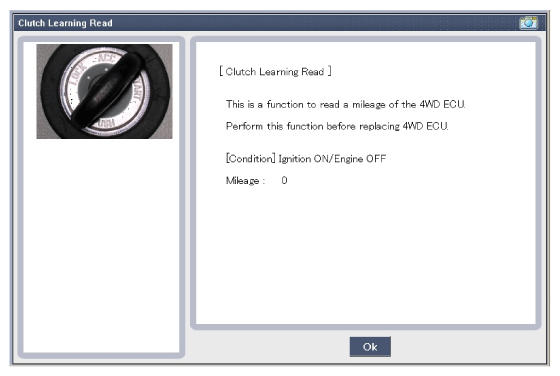

Fig 4: Scantool Display - Clutch Learning Read (Mileage)
Courtesy of KIA MOTORS AMERICA, INC.
After replacement: Enter the original ECU's clutch learning into the replacement ECU.

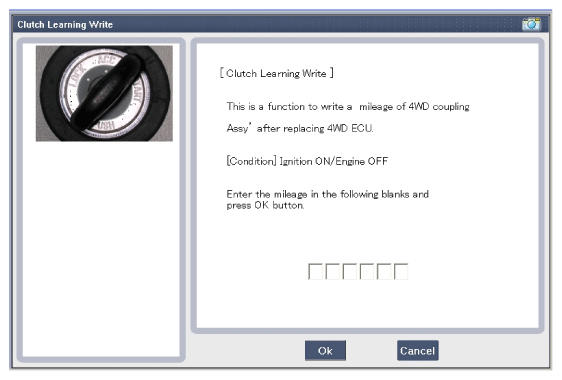

Fig 5: Scantool Display - Clutch Learning Write

Courtesy of KIA MOTORS AMERICA, INC.
