Vehicle S/W Management

Ignition switch "OFF"
Connect GDS to Data Link Connector (DLC).
Ignition switch "ON"& Engine "OFF"
Select the "Vehicle S/W Management" about related DTC with GDS.

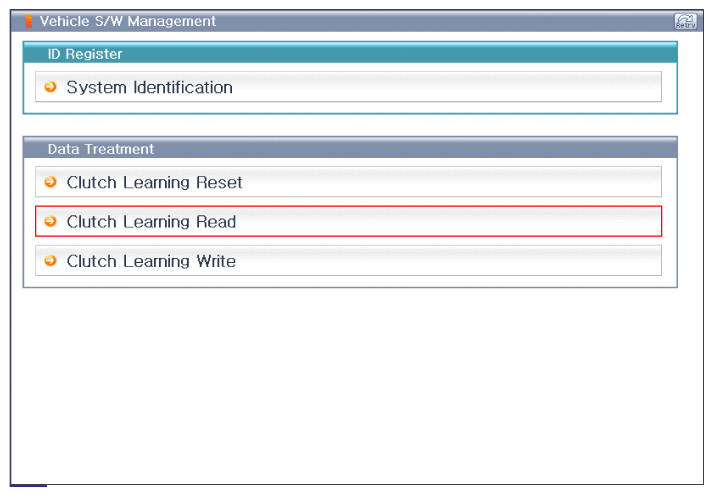

Fig 1: Screen Display - Vehicle S/W Management List
Courtesy of KIA MOTORS AMERICA, INC.

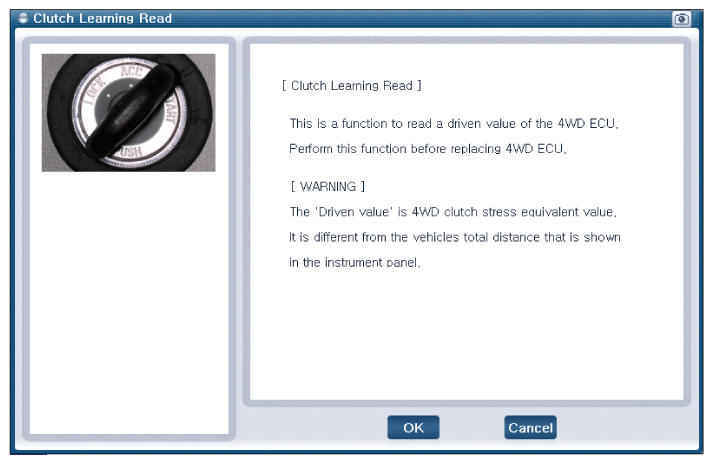

Fig 2: Screen Display - Clutch Learning Read 1
Courtesy of KIA MOTORS AMERICA, INC.

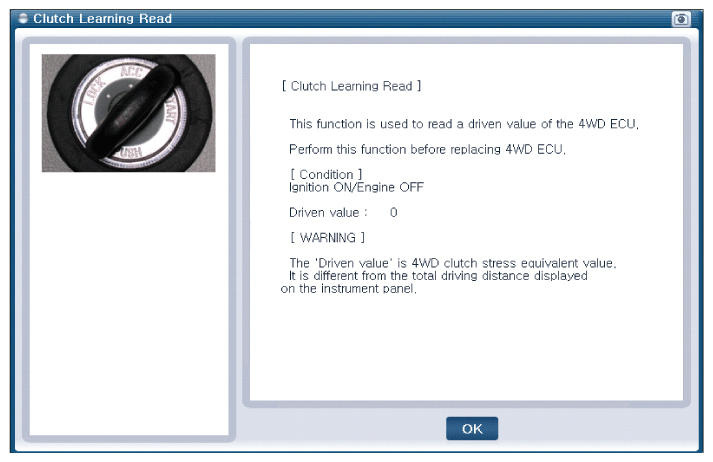

Fig 3: Screen Display - Clutch Learning Read 2
Courtesy of KIA MOTORS AMERICA, INC.

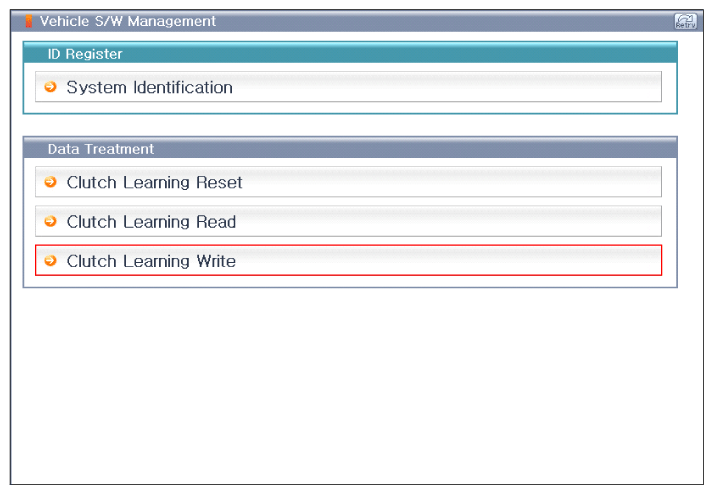

Fig 4: Screen Display - Vehicle S/W Management List
Courtesy of KIA MOTORS AMERICA, INC.

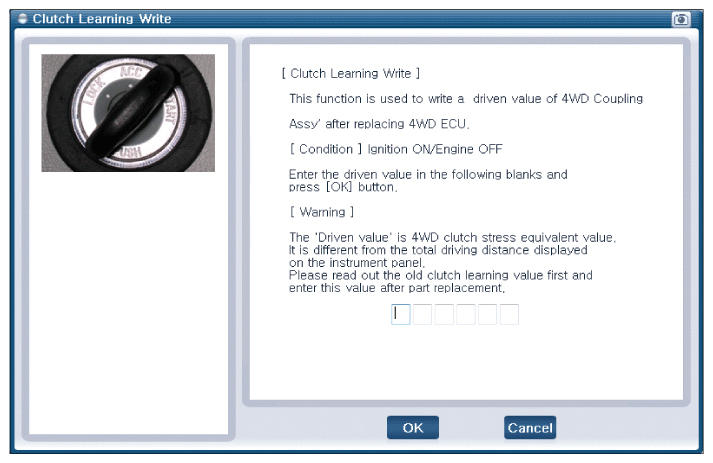

Fig 5: Screen Display - Clutch Learning Write 1
Courtesy of KIA MOTORS AMERICA, INC.

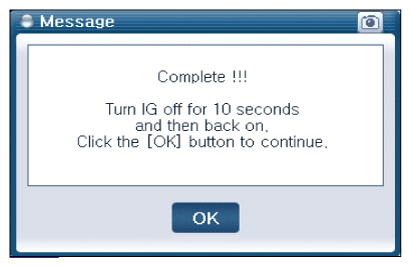

Fig 6: Screen Display - Clutch Learning Write 2
Courtesy of KIA MOTORS AMERICA, INC.
