Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

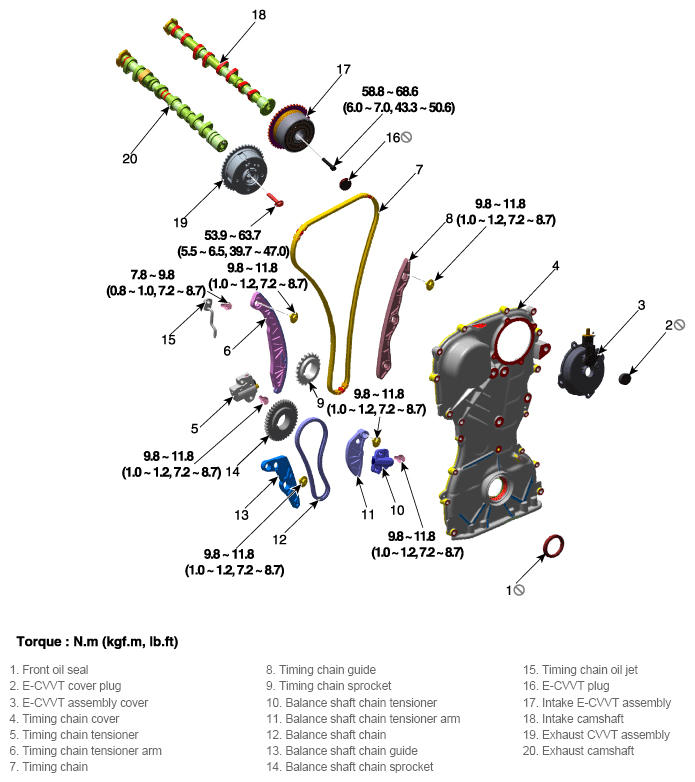

Fig 1: Locating Timing System Components With Torque Specifications
G12170085Courtesy of KIA MOTORS AMERICA, INC.
