Description and Operation: Description: Operation

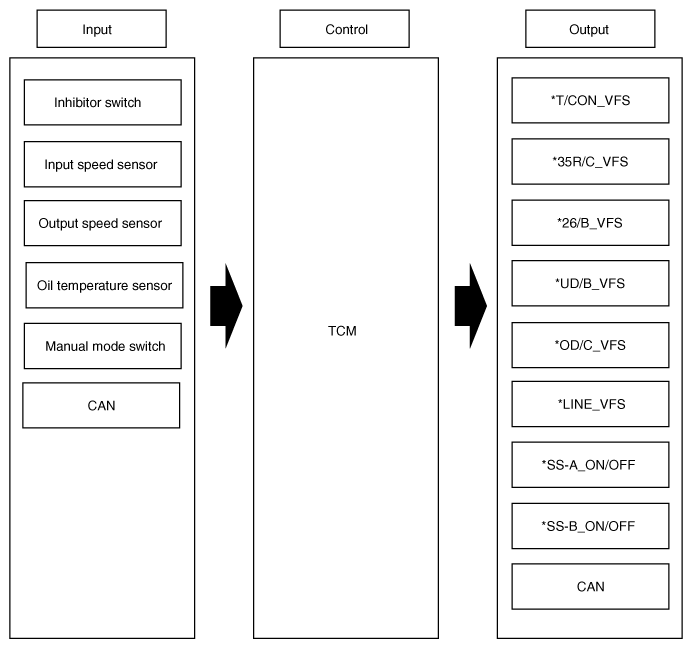

Fig 1: TCM Input And Output Diagram

Courtesy of KIA MOTORS AMERICA, INC.

• T/CON_VFS: Torque converter control solenoid valve
• 35R/C_VFS: 35R clutch control solenoid valve
• 26/B_VFS: 26 Brake control solenoid valve
• UD/B_VFS: Underdrive brake control solenoid valve
• OD/C_VFS: Overdrive clutch control solenoid valve
• LINE_VFS: Line pressure control solenoid valve
• SS-A_ON/OFF: Shift control solenoid valve-A
• SS-B_ON/OFF: Shift control solenoid valve-B
