Home >> Kia >> 2017 >> Sorento L >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Driveshaft Assembly >> TJ Joint >> Components And Components Location >> Components >> RH

Components And Components Location: Components: RH

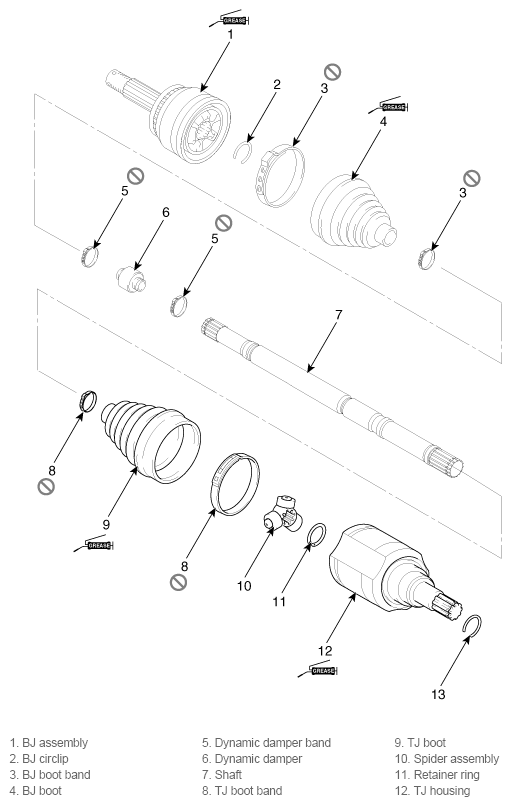

Fig 1: Locating TJ Joint Components

G12171936

Courtesy of KIA MOTORS AMERICA, INC.
