Components And Components Location: Components: LH

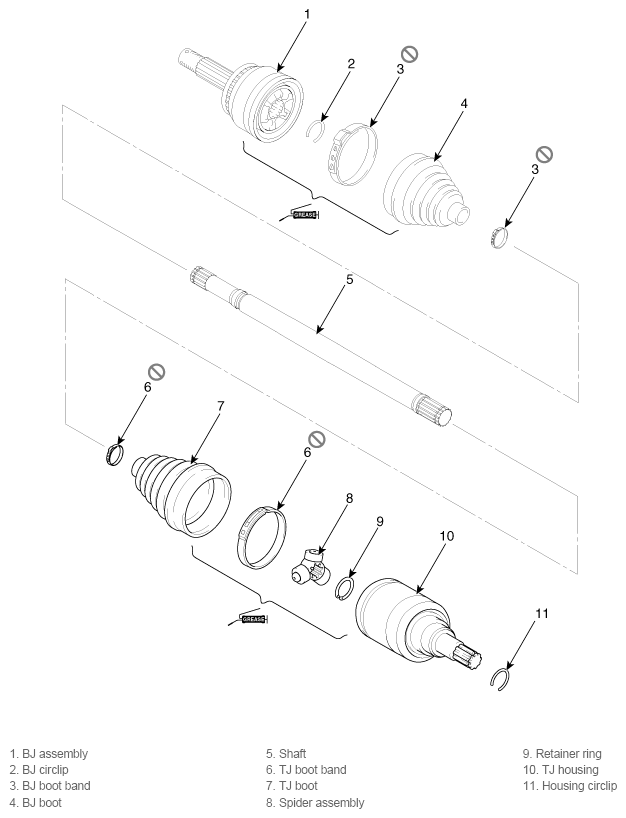

Fig 1: Locating TJ Joint Components

G12171935

Courtesy of KIA MOTORS AMERICA, INC.
