Components And Components Location: Components

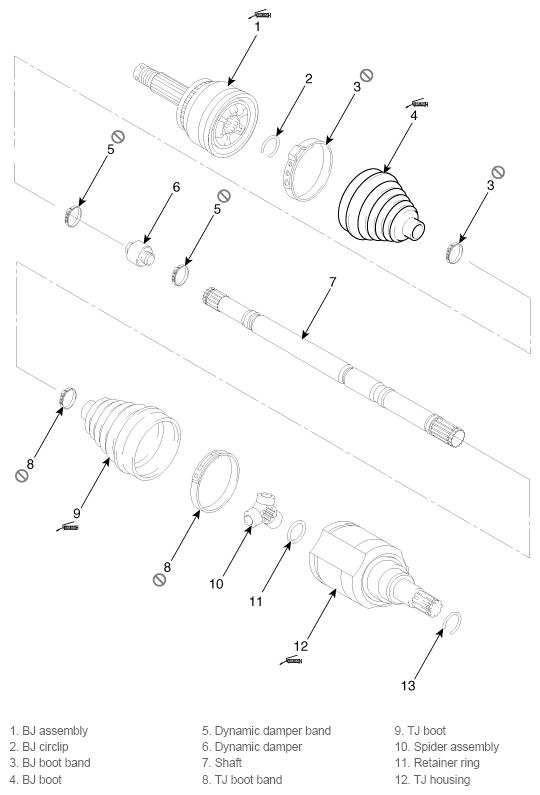

Fig 1: Locating BJ Boot Components

G12171953

Courtesy of KIA MOTORS AMERICA, INC.
