Assist Power Window Module (ADM)

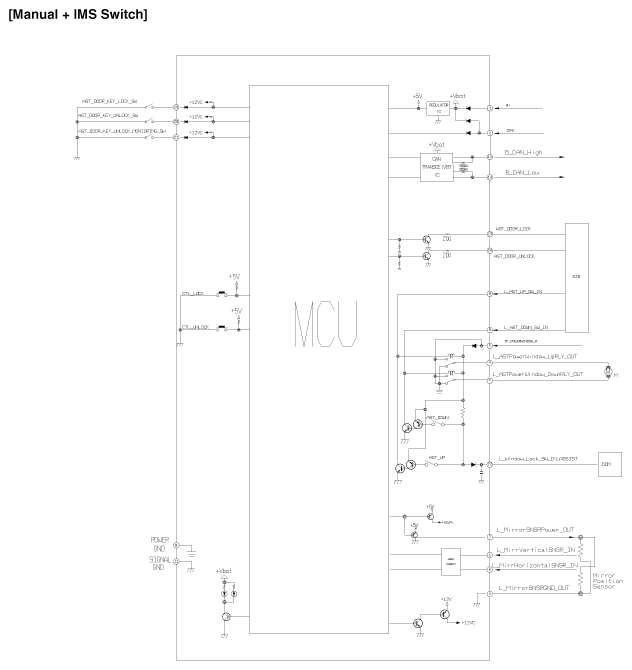

Fig 1: Assist Power Window Module Circuit Diagram (1 Of 2)
G12176728Courtesy of KIA MOTORS AMERICA, INC.

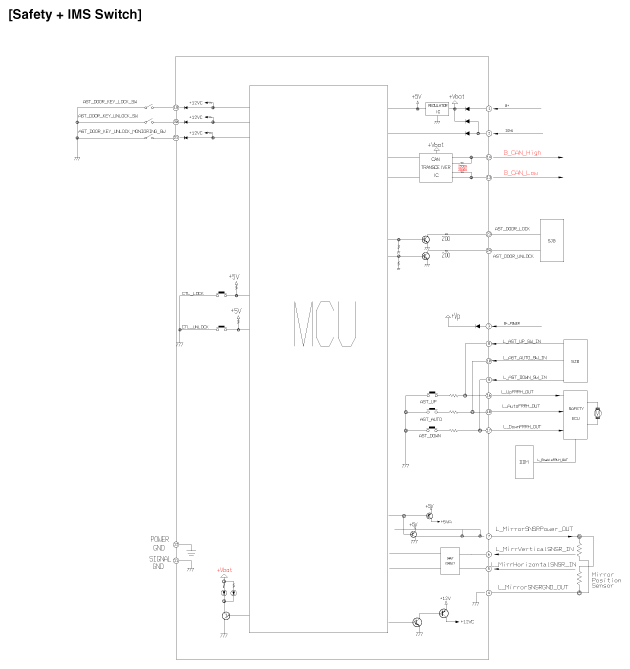

Fig 2: Assist Power Window Module Circuit Diagram (2 Of 2)
G12176729Courtesy of KIA MOTORS AMERICA, INC.
