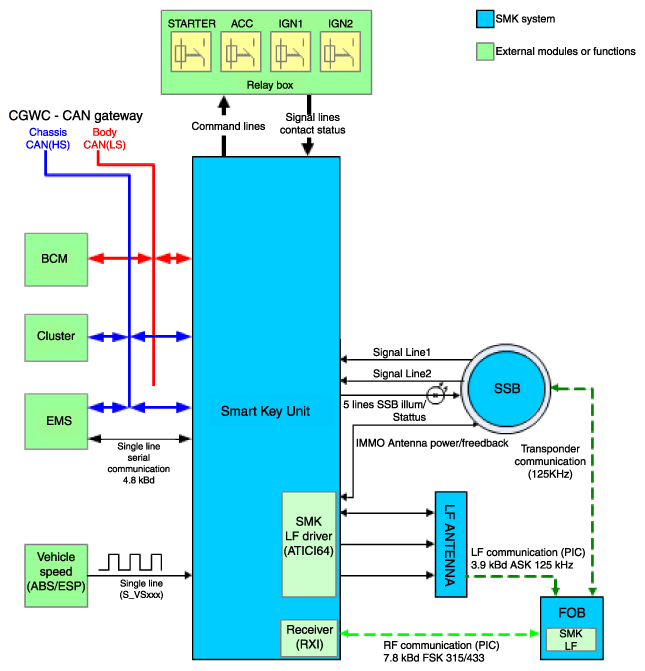

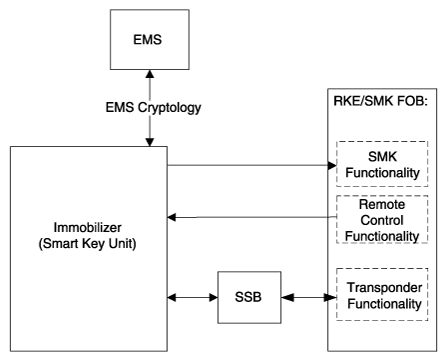

Home >> Kia >> 2017 >> Sorento L >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Button Engine Start System >> Components And Components Location >> Schematic Diagrams >> Circuit Diagrams
