Cluster Module Variant Coding

Verify vehicle options and have VIN code in hand.
Perform "CLU Variant Coding" in the "Vehicle S/W Management" with GDS.
Check for DTCs in the system.

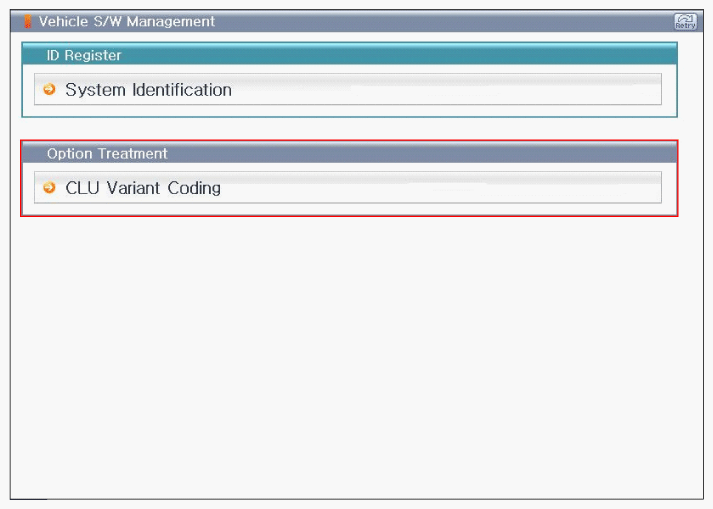

Fig 1: Screen Display - Cluster Module Variant Coding (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

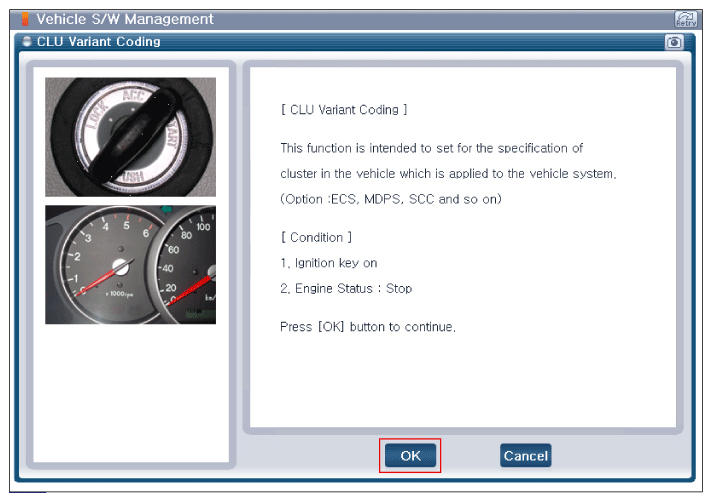

Fig 2: Screen Display - Cluster Module Variant Coding (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

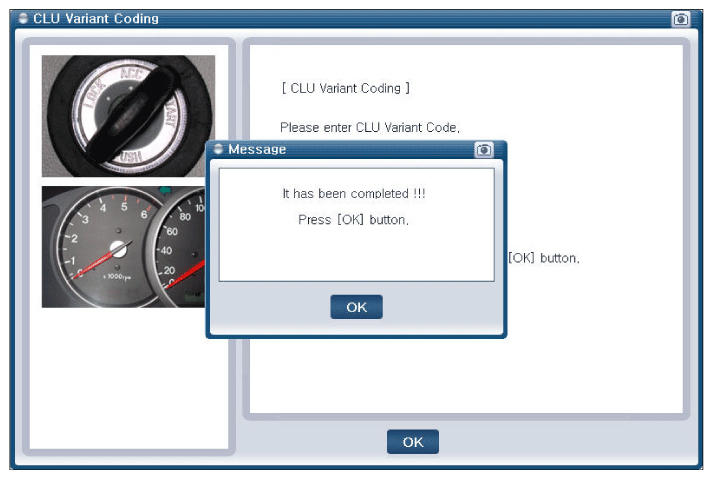

Fig 3: Screen Display - Cluster Module Variant Coding (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Is the DTCs stored in the system as a present?
YES
- Replace cluster module and perform "CLU VARIANT CODING " procedure in the "Vehicle S/W Management" with GDS again, and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "WIRING INSPECTION " procedure.
