Components And Components Location: Components

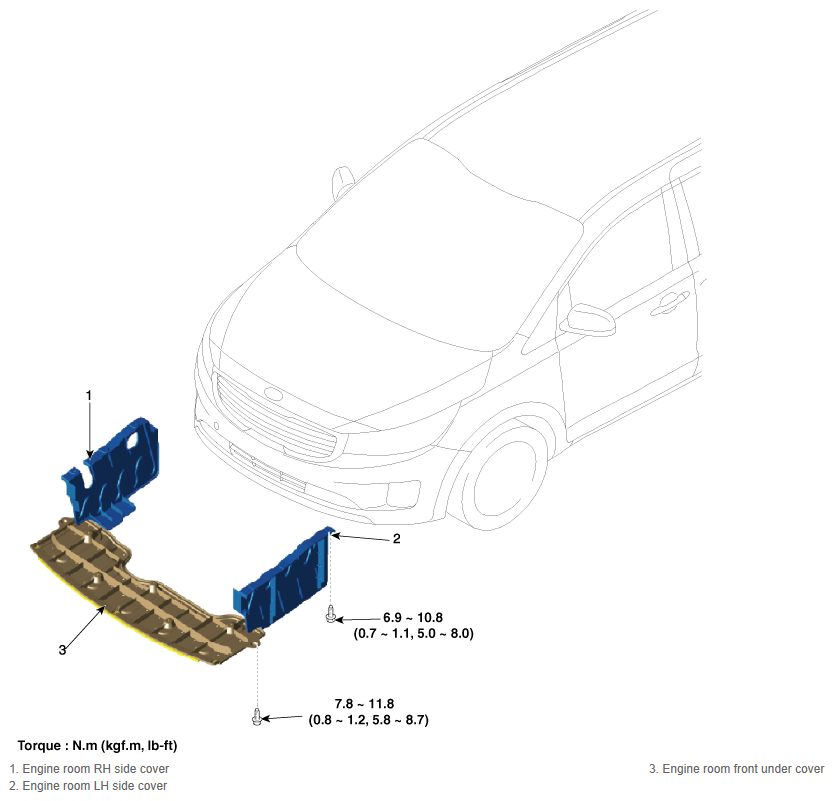

Fig 1: Engine Room Under Cover Components Location With Torque Specification

G12273300

Courtesy of KIA MOTORS AMERICA, INC.
