Components And Components Location: Components: [RH]

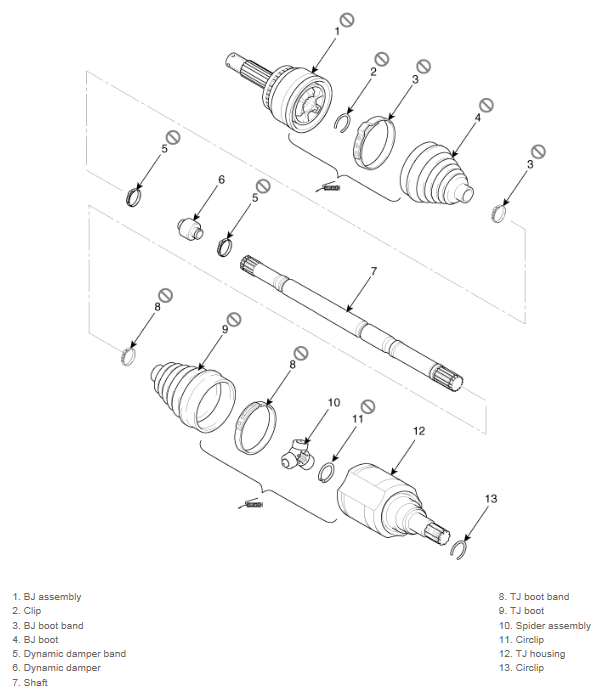

Fig 1: Exploded View Of Front Driveshaft (RH)

G12264453

Courtesy of KIA MOTORS AMERICA, INC.
