Components And Components Location: Components: [LH]

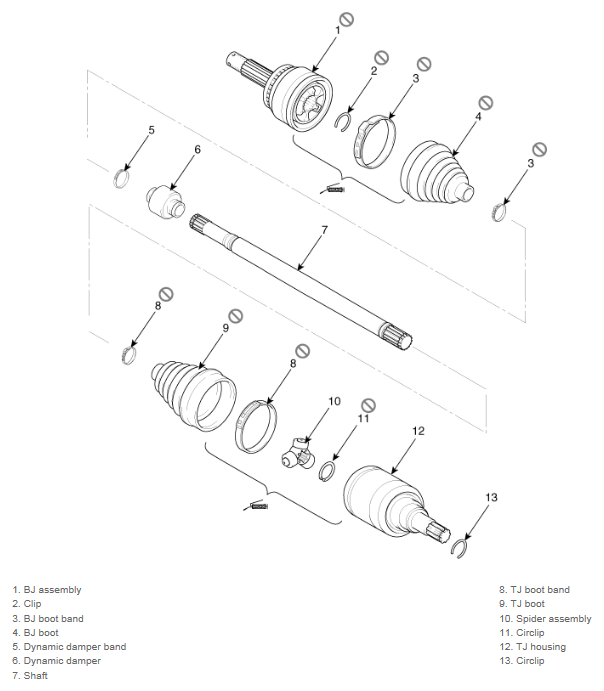

Fig 1: Exploded View Of Front Driveshaft (LH)

G12264452

Courtesy of KIA MOTORS AMERICA, INC.
