Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Automatic Transaxle Control System
>>
Transaxle Oil Temperature Sensor
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

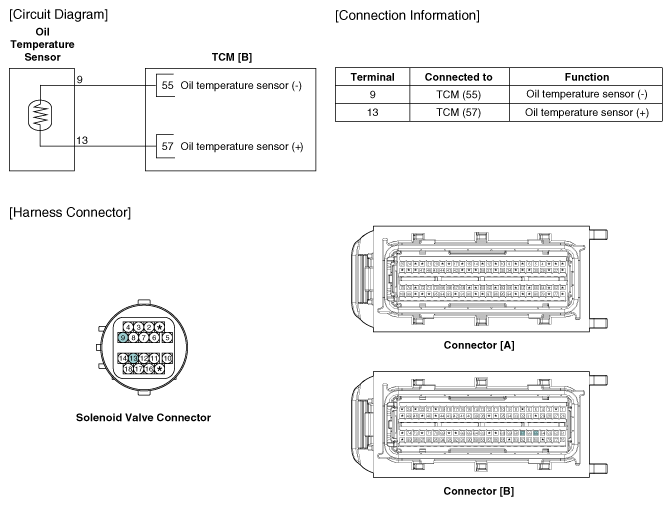

Fig 1: Transaxle Oil Temperature Sensor Circuit Diagram And Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
