Resetting Adaptive Values

Connect GDS to Data Link Cable (DLC).
IG "ON" & ENG "OFF".
Select the "Vehicle S/W Management" about related DTC with GDS.

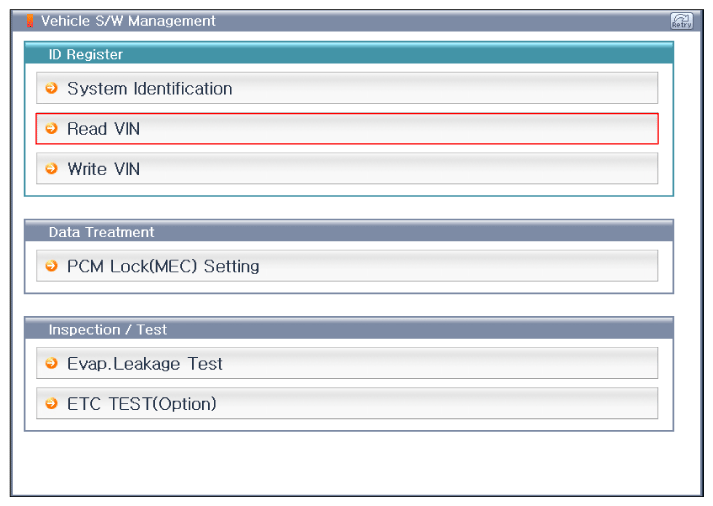

Fig 1: Scantool Display - Selecting Read VIN
Courtesy of KIA MOTORS AMERICA, INC.

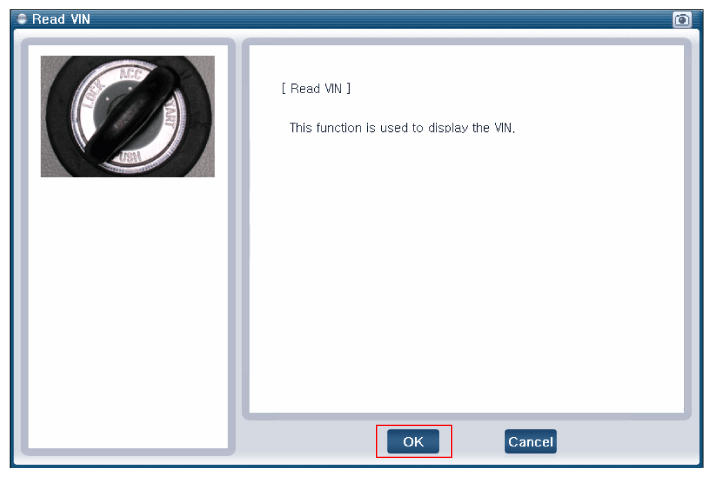

Fig 2: Scantool Display - Pressing OK Button (IG ON, ENG OFF)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Scantool Display - Checking VIN Number (Completed)
Courtesy of KIA MOTORS AMERICA, INC.

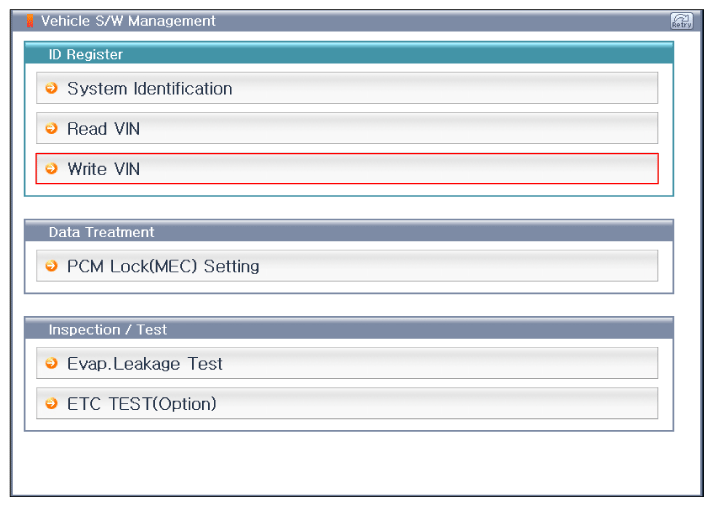

Fig 4: Scantool Display - Selecting Write VIN
Courtesy of KIA MOTORS AMERICA, INC.

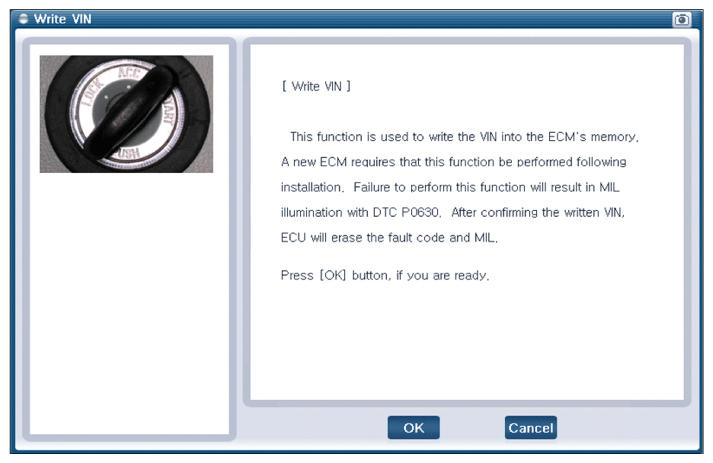

Fig 5: Scantool Display - Pressing OK Button (IG ON, ENG OFF)
Courtesy of KIA MOTORS AMERICA, INC.

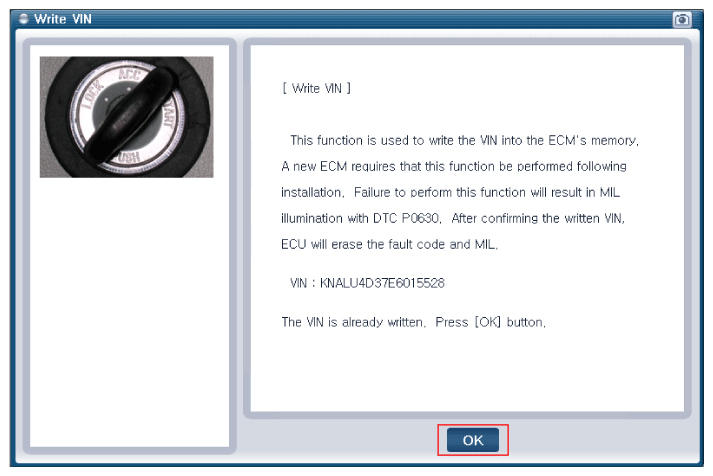

Fig 6: Scantool Display - Checking VIN Number (Completed)
Courtesy of KIA MOTORS AMERICA, INC.
When the "Read VIN, Write VIN" has been finished perfectly, press "OK" button and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
