Components And Components Location: Components

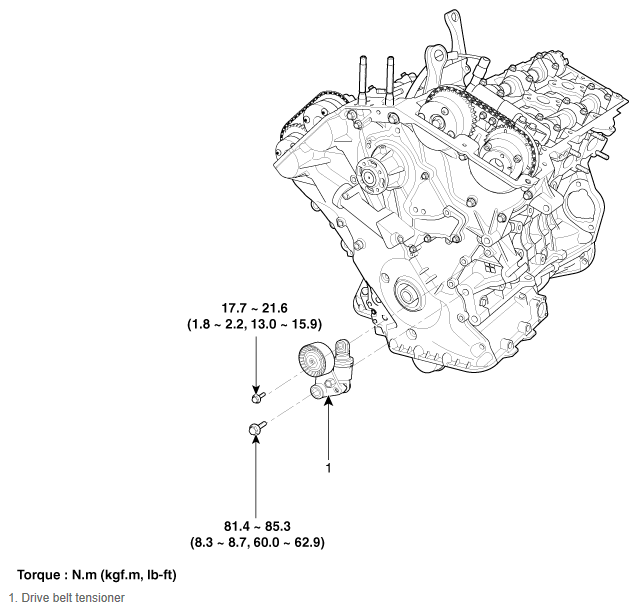

Fig 1: Drive Belt Tensioner Components Location With Torque Specification

G12273419

Courtesy of KIA MOTORS AMERICA, INC.
