[Assist Power Window Module (ADM, IMS)]

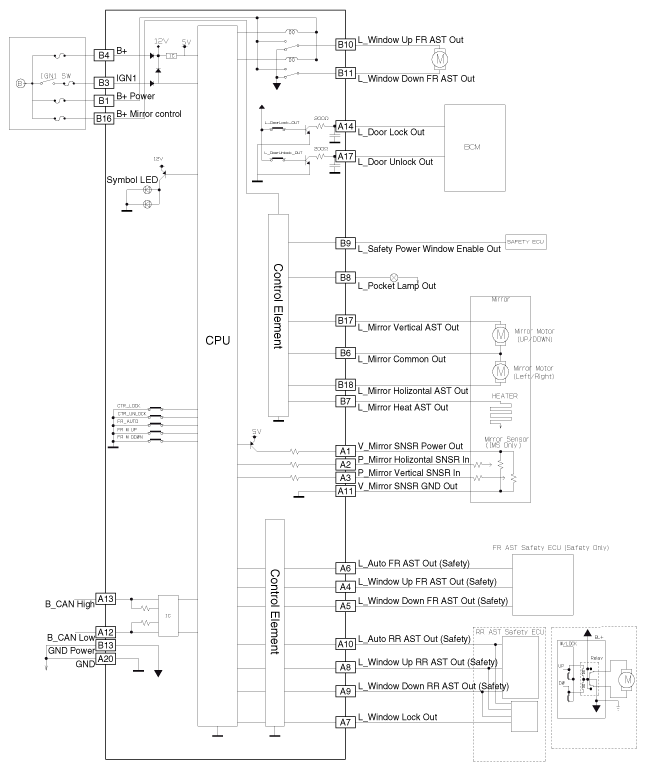

Fig 1: Assist Power Window Module Circuit Diagram (ADM, IMS)

G12272372

Courtesy of KIA MOTORS AMERICA, INC.
