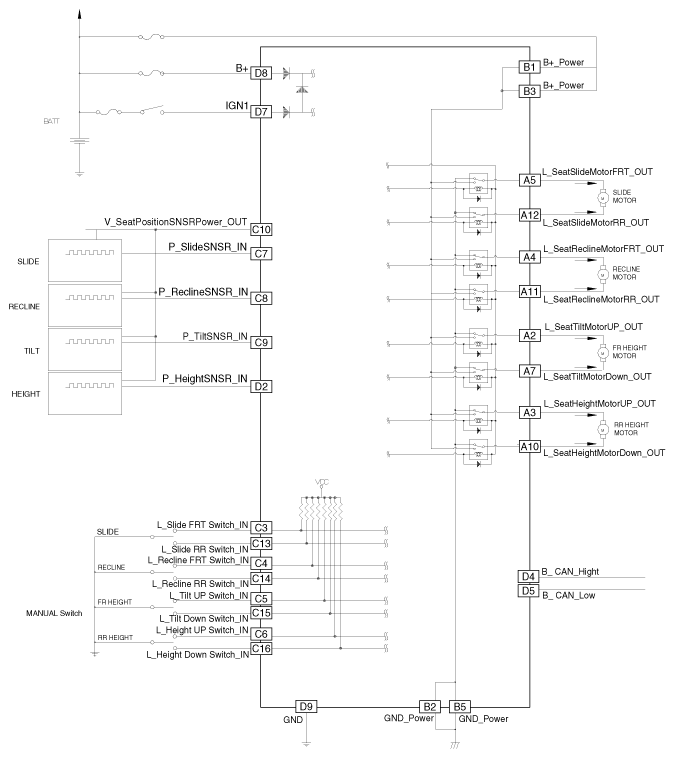

Home >> Kia >> 2017 >> Sedona L >> Repair and Diagnosis >> Accessories & Equipment >> Memory Modules >> Integrated Memory (IMS) System >> IMS (Integrated Memory System) Module >> Schematic Diagrams >> Circuit Diagram
