Cluster module variant coding

Verify vehicle options and have VIN code in hand.
Perform "CLU VARIANT CODING " in the "Vehicle S/W Management " with GDS.
Check for DTCs in the system.
Is the DTCs stored in the system as a present?

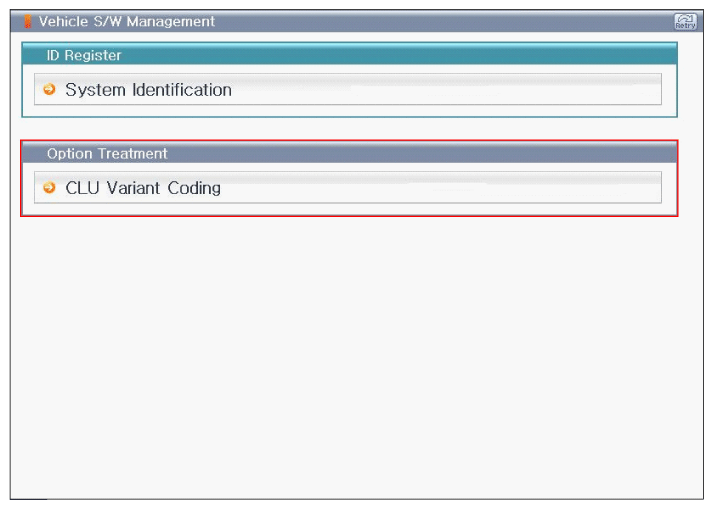

Fig 1: Scantool Display - Vehicle S/W Management (Cluster Module Variant Coding)
Courtesy of KIA MOTORS AMERICA, INC.

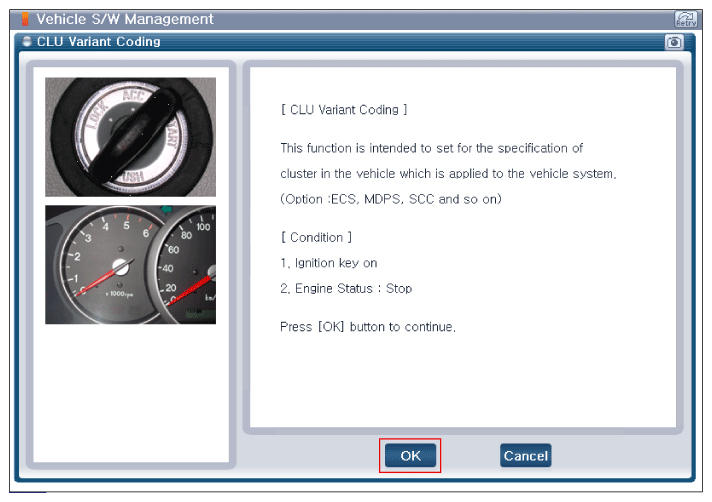

Fig 2: Scantool Display - Cluster Module Variant Coding
Courtesy of KIA MOTORS AMERICA, INC.

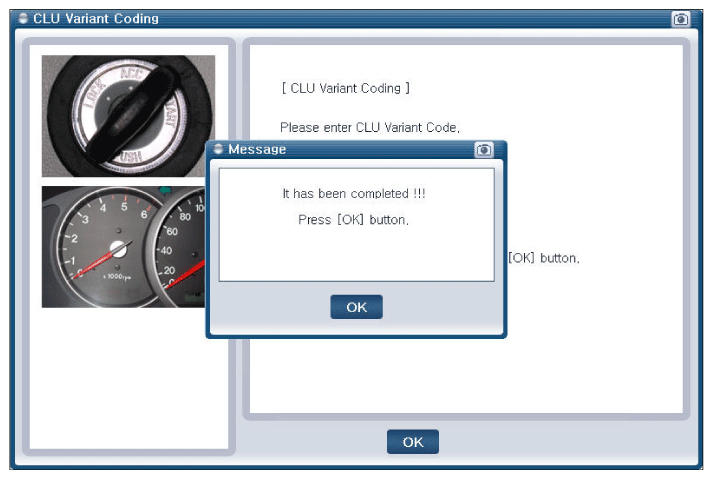

Fig 3: Scantool Display - Cluster Module Variant Coding (Completed)
Courtesy of KIA MOTORS AMERICA, INC.

YES
- Replace cluster module and perform "CLU VARIANT CODING " procedure in the "Vehicle S/W Management" with GDS again, and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "WIRING INSPECTION " procedure.
