Components And Components Location: Components

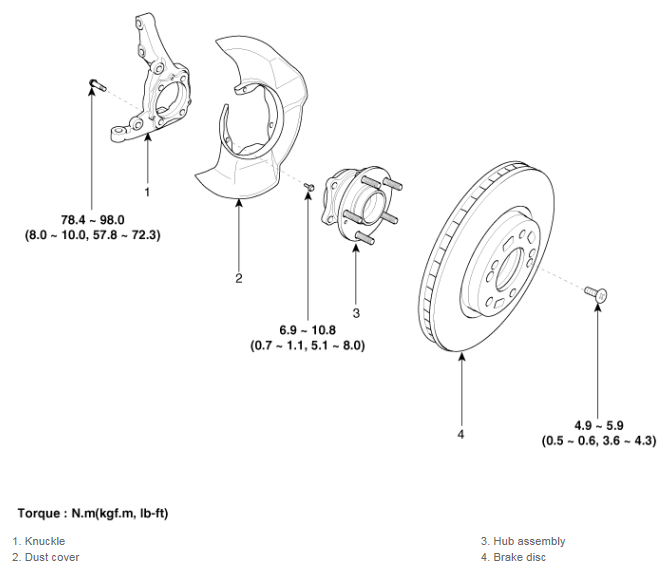

Fig 1: Front Hub/Knuckle/Tone Wheel Components With Torque Specification

G12264479

Courtesy of KIA MOTORS AMERICA, INC.
