Home >> Kia >> 2017 >> Sedona EX >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 3) >> DTC P0087: Fuel Rail/System Pressure - Too Low >> Specification >> Signal Waveform & Data

Signal Waveform & Data

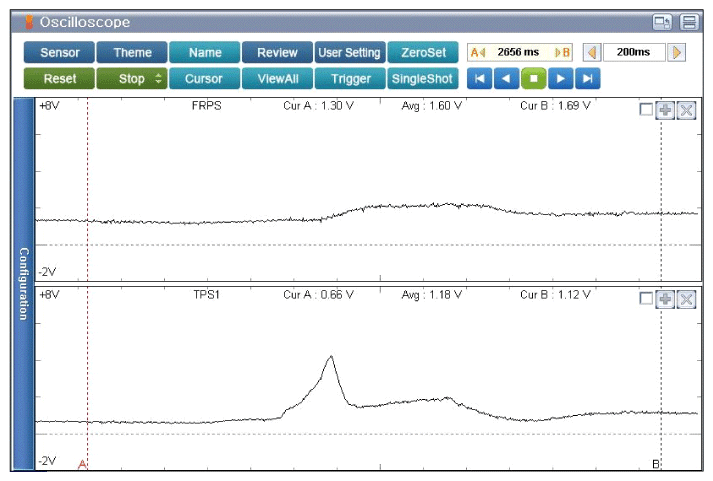

Fig 1: Screen Display - Normal Waveforms Of FPRS & TPS1 During Acceleration
G12276454Courtesy of KIA MOTORS AMERICA, INC.

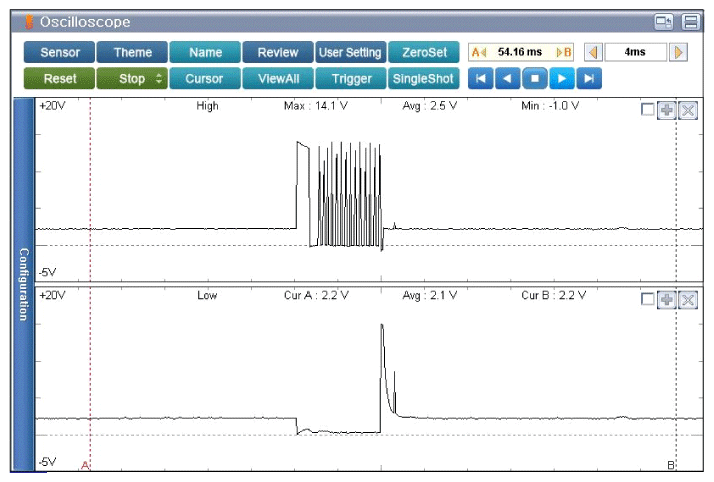

Fig 2: Screen Display - Normal Waveforms Of FPR At Engine Idle
G12276455Courtesy of KIA MOTORS AMERICA, INC.

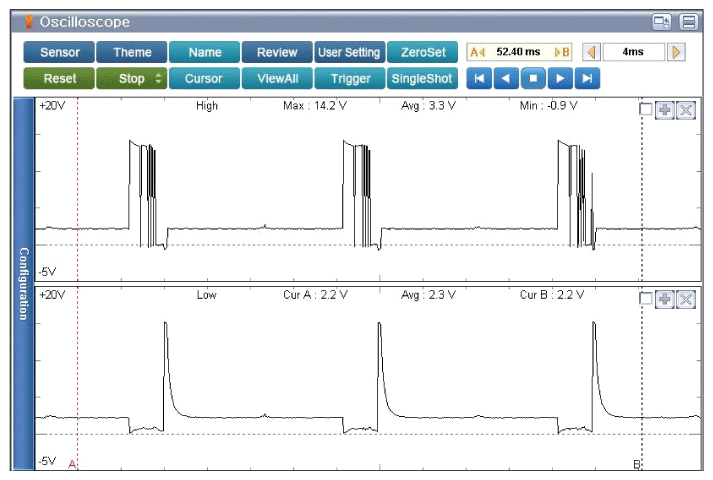

Fig 3: Screen Display - Normal Waveforms Of FPR At Approx. 2000RPM
G12276456Courtesy of KIA MOTORS AMERICA, INC.
