Components And Components Location: Components

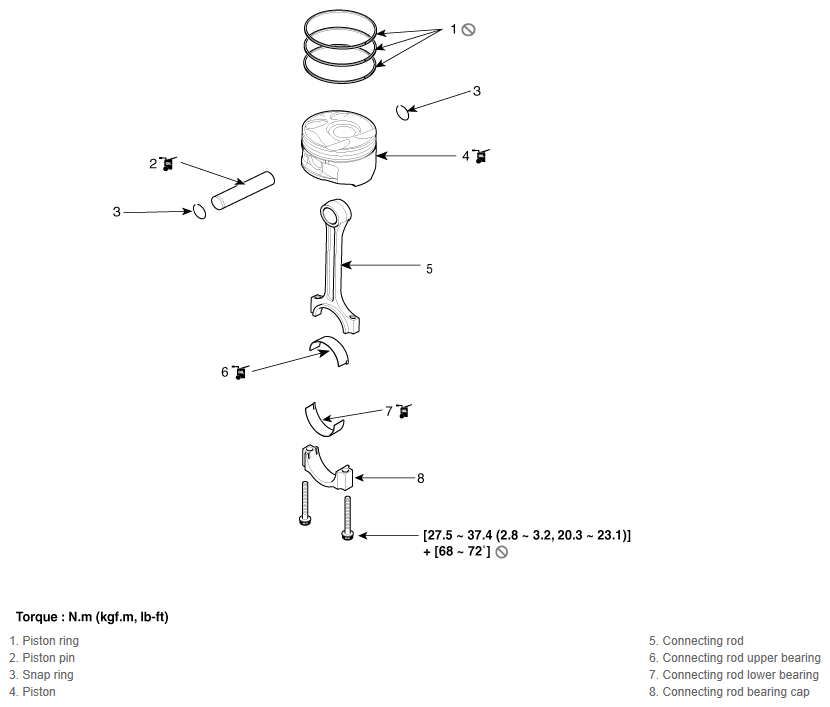

Fig 1: Piston & Connecting Rod Components Location With Torque Specification

G12273130

Courtesy of KIA MOTORS AMERICA, INC.
