Home >> Kia >> 2017 >> Sedona EX >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Oil Level Gauge & Pipe >> Components And Components Location >> Components

Components And Components Location: Components

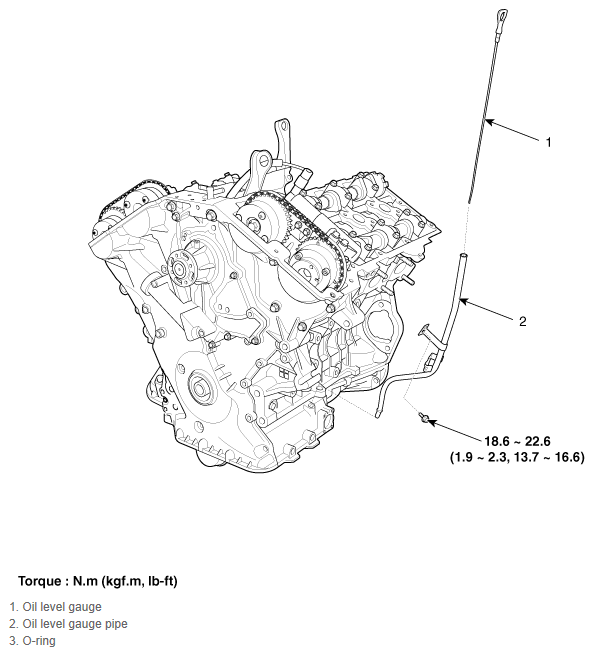

Fig 1: Oil Level Gauge & Pipe Components Location With Torque Specification

G12273408

Courtesy of KIA MOTORS AMERICA, INC.
