Components And Components Location: Components

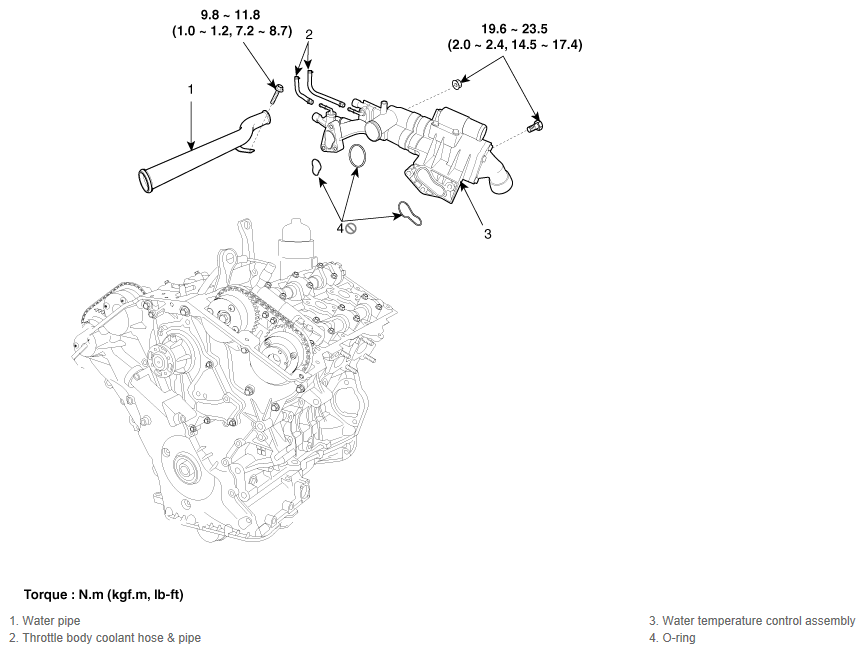

Fig 1: Water Temperature Control Assembly Components Location With Torque Specification

G12273094

Courtesy of KIA MOTORS AMERICA, INC.
