CLU Variant Coding

After replacing the cluster with a new one, the "Variant Coding" procedure must be performed.

1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.
2. Select model and "BCM".
3. Select Variant coding mode to perform.

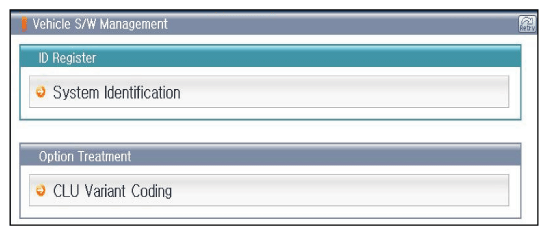

   Fig 1: Screen Display - Vehicle S/W Management

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 2: Screen Display - CLU Variant Coding

   Courtesy of KIA MOTORS AMERICA, INC.

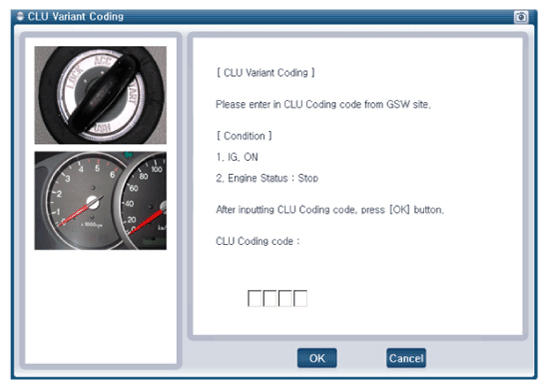

   Fig 3: Screen Display - CLU Variant Coding (Enter Code)

   Courtesy of KIA MOTORS AMERICA, INC.
4. If the trouble codes occurred when performing variant coding, try the CLU variant coding again after checking the installation status of CLU system.

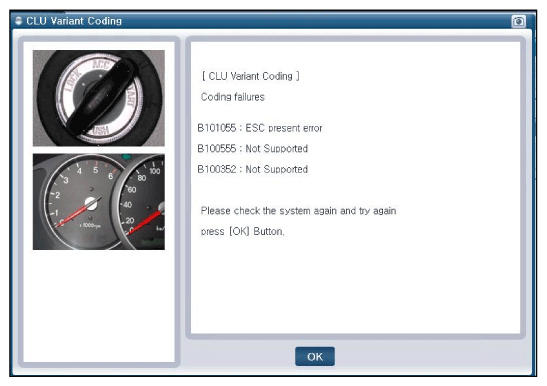

   Fig 4: Screen Display - Performing Variant Coding

   Courtesy of KIA MOTORS AMERICA, INC.
