FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

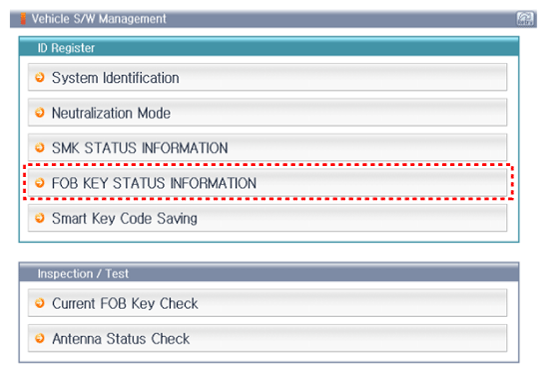

Fig 1: Screen Display - Select FOB Key Status INFO (1 Of 2)
G12272477Courtesy of KIA MOTORS AMERICA, INC.

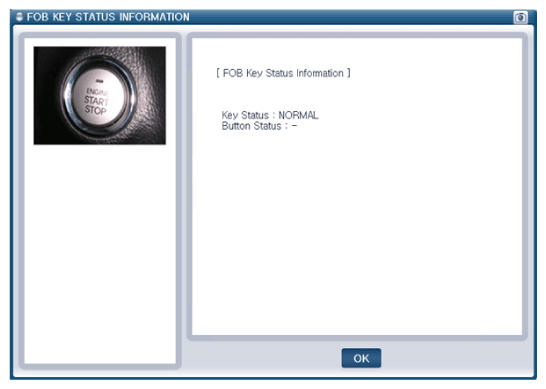

Fig 2: Screen Display - Select FOB Key Status INFO (2 Of 2)
G12272478Courtesy of KIA MOTORS AMERICA, INC.
